Interbike 2010 First Ride: Cannondale CAAD10

By:
James Huang, technical editor
Published:
September 26, 2010, 11:41 BST,
Updated:
September 26, 2010, 12:54 BST

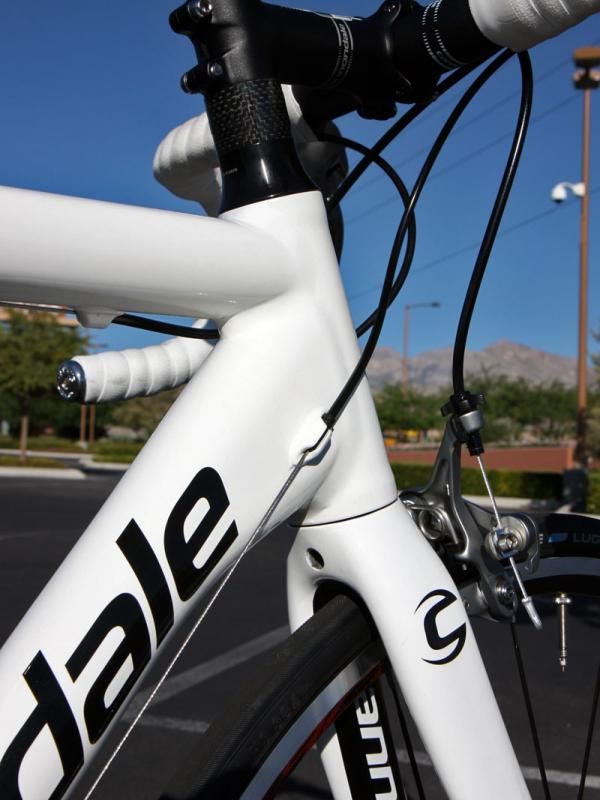

The giant hydroformed down tube flares at the tapered head tube to lend additional support.

The giant hydroformed down tube flares at the tapered head tube to lend additional support.

view thumbnail gallery

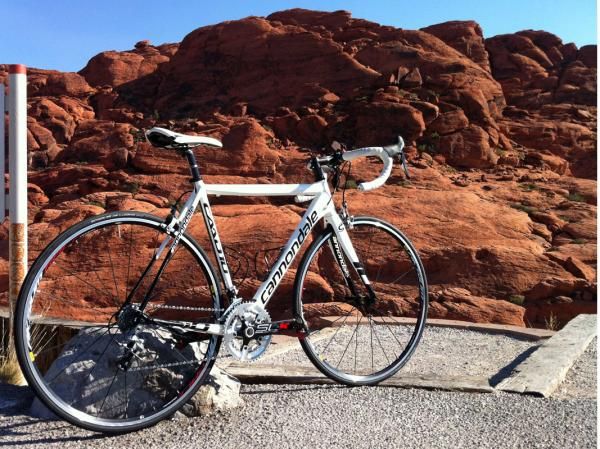

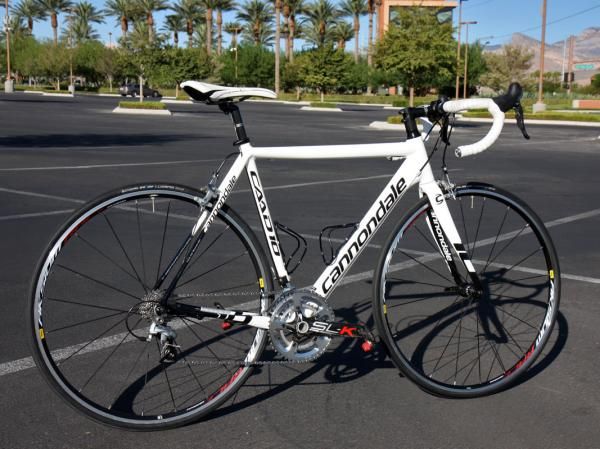

Cannondale's classic CAAD9 aluminum road chassis gets a big bump in performance for 2011 with the introduction of the CAAD10. And it's not just a modest refresh – the new CAAD10 is a wholesale redesign from top to bottom and if our initial ride around the picturesque Red Rocks area west of downtown Las Vegas is any indication, it'll surely continue to be a top pick for privateer racers.

Our medium-paced group ride quickly evolved into spirited mini-sprints up each successive rise and the CAAD10 is refreshingly devoid of vagueness when you mash on the pedals or yank hard on the bars. Chassis stiffness is easily on par with many mid level carbon frames we've ridden – and better than most entry-level ones – both in terms of pedaling efficiency and front triangle torsion, proving again that it's better to have a more advanced example of a lesser material than a lesser example of a more advanced one.

Comfort-wise the new CAAD10 is certainly no old-school aluminum tooth rattler either, with a surprisingly refined feel on road texture while also doing a decent job on taking the edge off more abrupt obstacles like expansion joints and cattle guards.

Handling is thankfully retained from the well-sorted CAAD9 and is neither too quick nor excessively languid. Turn-in on the CAAD10 is appropriately quick and the chassis takes a solid set when attacking downhill corners. And yet it's still stable enough to allow me to sit up and snap a few photos while casually rolling along at speed. Dedicated criterium racers may wish for something a bit more aggressive and casual riders might prefer a taller front end and more relaxed feel but for the majority of enthusiasts out there it should be just right.

Let's be perfectly clear, though: as advanced as the CAAD10 is, it's no SuperSix Hi-Mod. That flagship carbon chassis is still a bit more efficient under power, noticeably snappier when you torque the front end, lighter, and notably smoother both in terms of high-frequency vibration and bigger impacts – though we'll continue to extract more details on that as the months roll by on a long-term tester.

But given the claimed weight of just 1,150g for an anodized 56cm CAAD10 – nearly 200g (0.44lb) lighter than the CAAD9 – the performance gap between the CAAD10 and SuperSix Hi-Mod has narrowed considerably. And at US$999, the CAAD10 frameset is less than one-third the cost of a SuperSix Hi-Mod.

Alloy chassis but carbon-like shaping

Despite the all-aluminum frame construction, the new CAAD10 frame shares much of its shape and design philosophy with the carbon fiber Flash hardtail – something Cannondale says was permitted by a switch from conventional 6061 alloy to the stronger and more formable 6069.

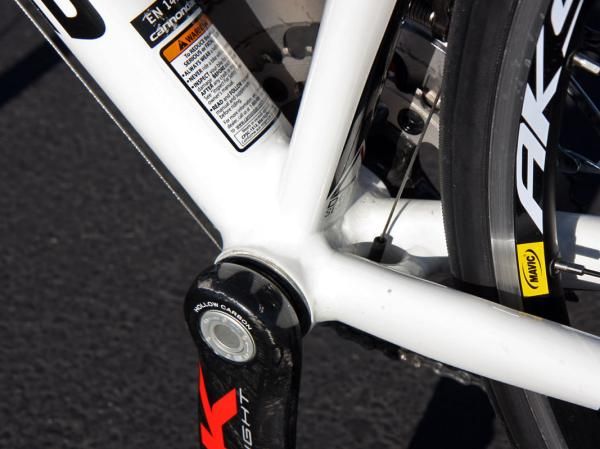

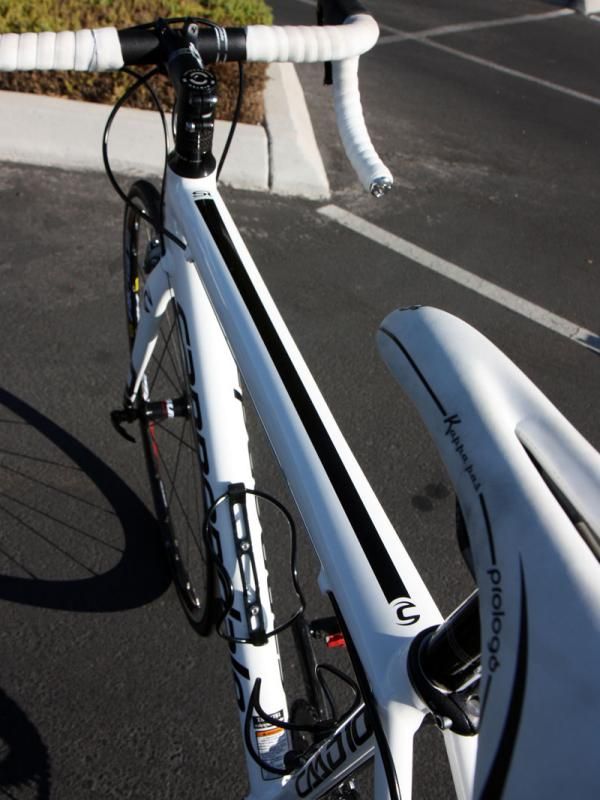

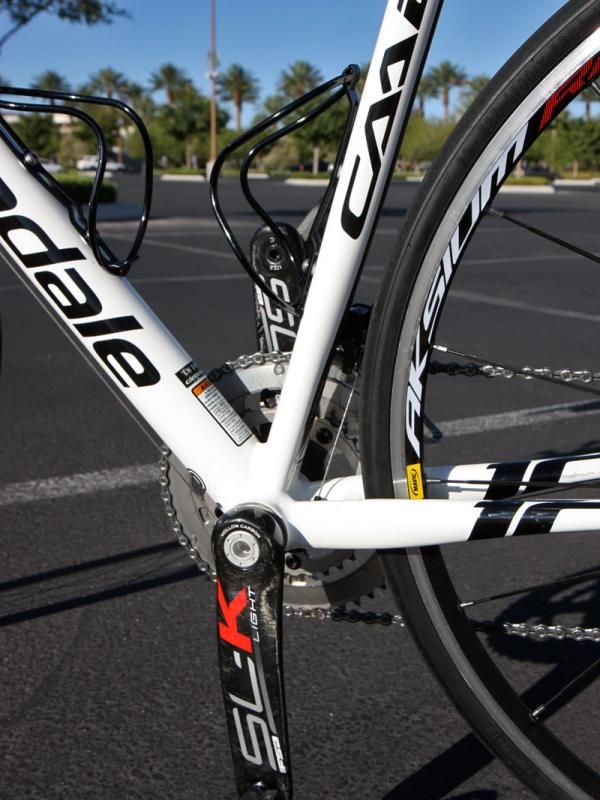

Starting up front, there's a newly tapered 1 1/8" to 1 1/4" head tube joined to a relatively constant-diameter (in contrast to the old Power Pyramid design of the CAAD9) hydro-formed down tube with additional flaring to lend even more steering precision. Adding to the CAAD10's extra stiffness is the slightly hourglass-shaped top tube – which is horizontally flattened at either end to combat side-to-side flex but not so much in the middle to avoid impinging on knock-kneed pedalers. There is also the so-called 'Delta' seat tube with its radically flattened profile at the milled-out BB30 bottom bracket shell.

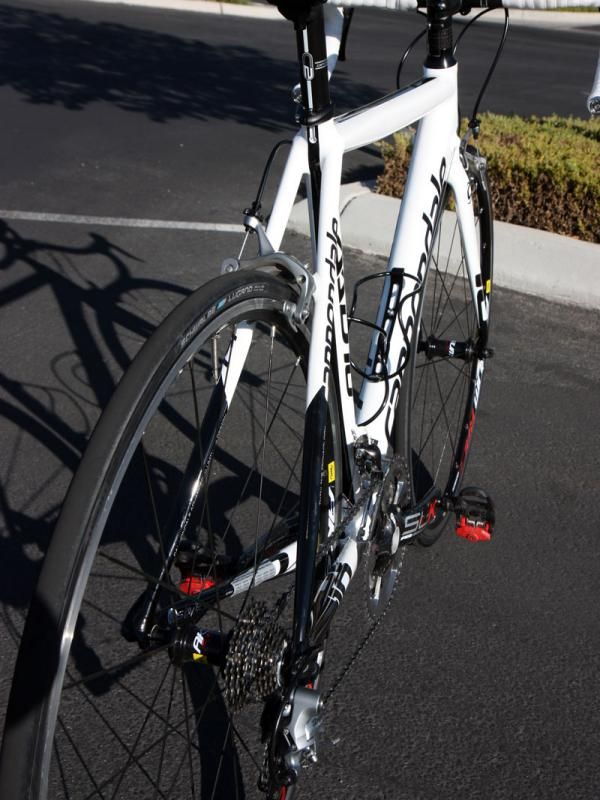

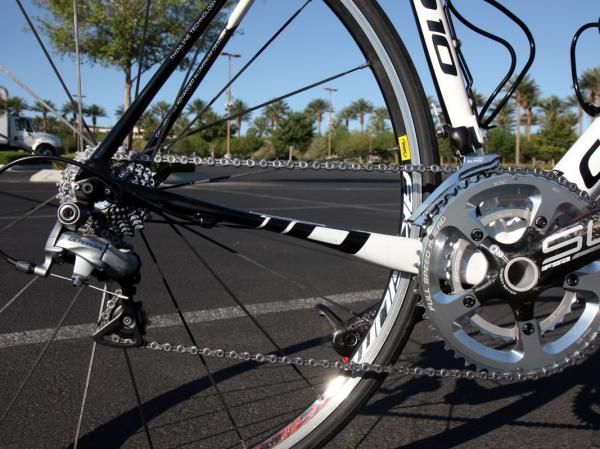

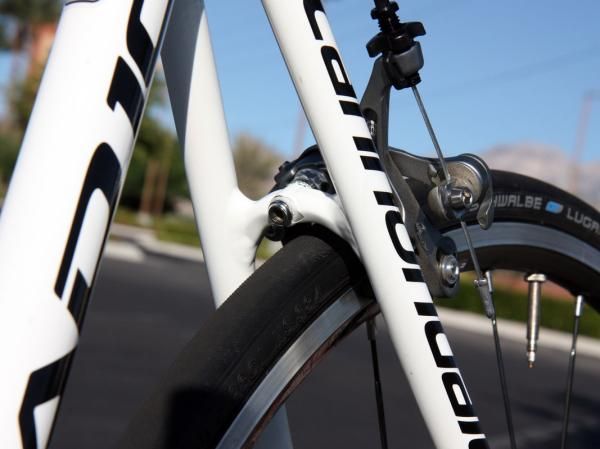

Back at the business end are asymmetrical chain stays – the drive side one is slightly rectangular and taller while the non-drive side is more rounded – plus tiny alloy dropouts with a resurrected sandwich-style hanger to provide a more solid foundation for finicky 10- and 11-speed drive trains. Interestingly, Cannondale has also ditched its long-standing hourglass-bend seat stays in favor of straight shots from end-to-end plus a trick hollow-forged bridge that's welded in between.

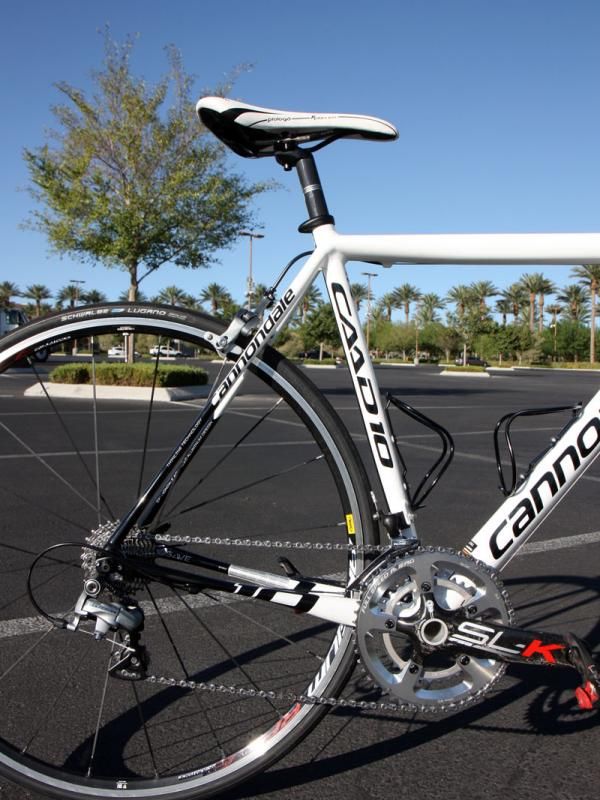

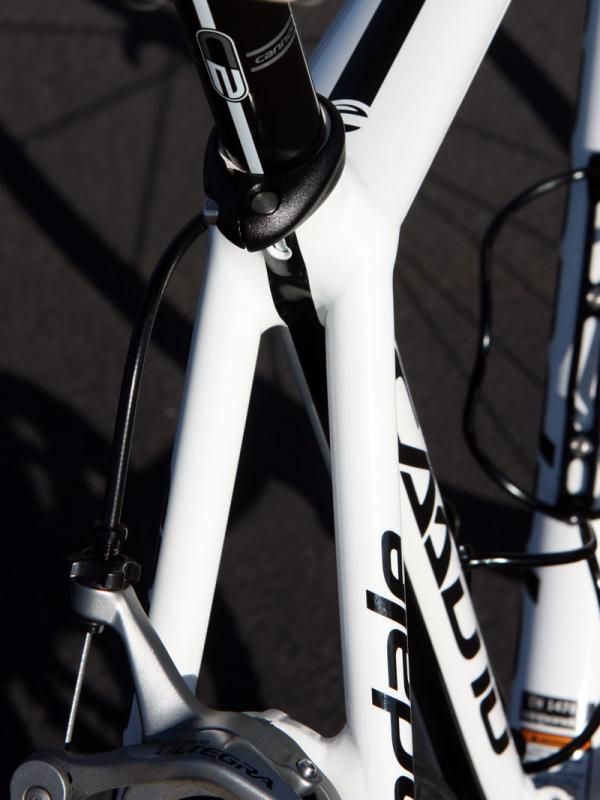

Most of the Flash-like shaping is found out back with the flattened seat- and chain stays and the especially widely set seat cluster. According to Cannondale – and seemingly reinforced by our initial test ride – this lessens side-to-side wag as compared to the CAAD9 while also lending more flex on bumps.

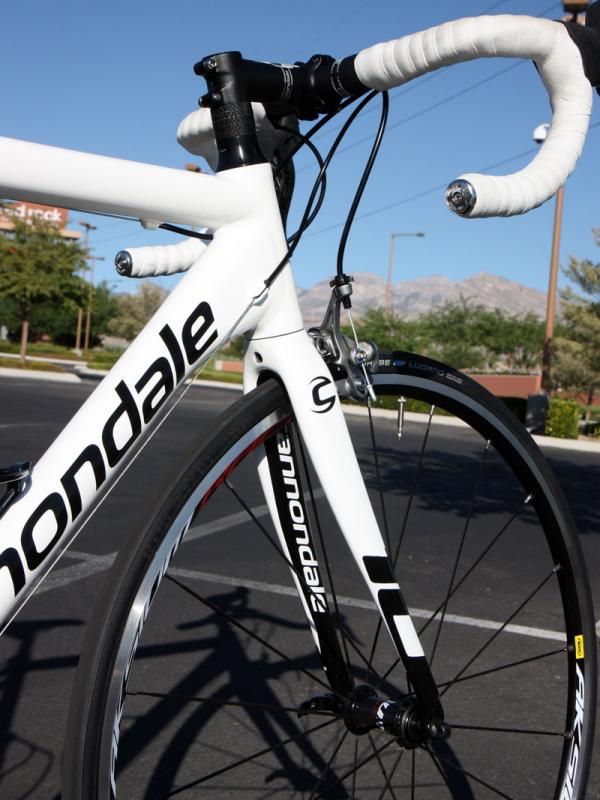

The new carbon fork is nothing to sneeze at either, with full-carbon construction right down to the dropouts and a respectable 390g claimed weight. In a nod to old-school frame design, Cannondale says the forks' extra rake also helps provide the comfier ride but retains modern handling characteristics thanks to the rearwardly offset tips.

Definitely not vaporware

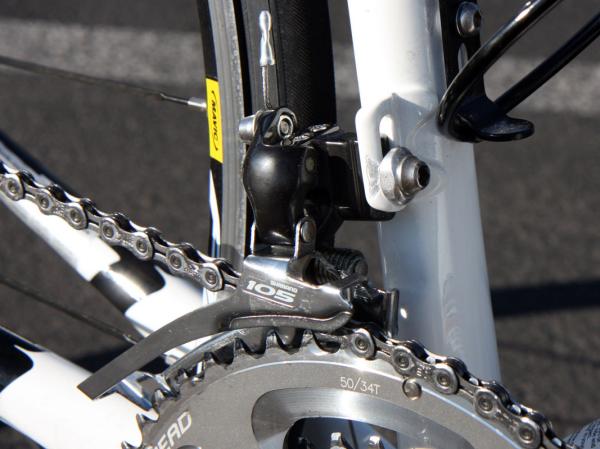

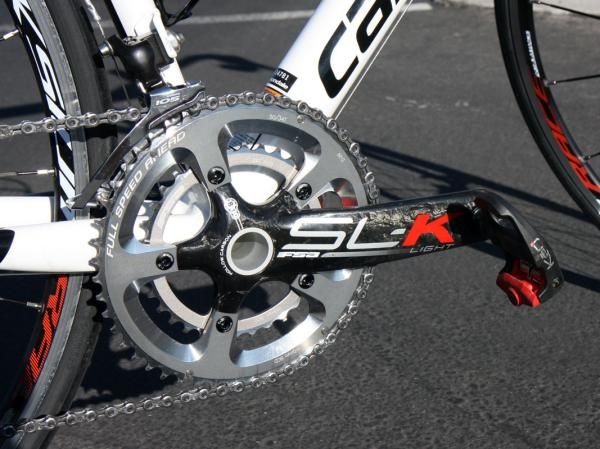

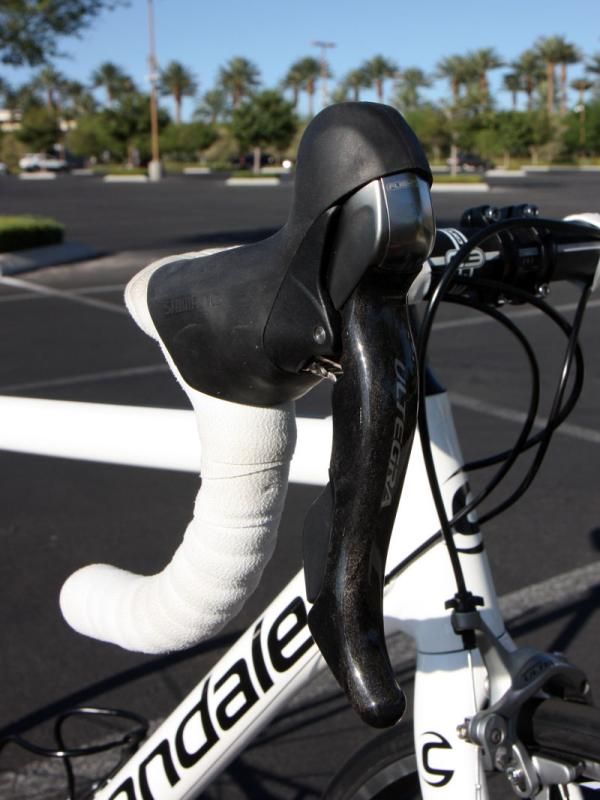

The refreshingly wide eight-size collection spans 48-63cm and parts kits range from Shimano 105 to Dura-Ace – with a SRAM Rival build thrown in for good measure. Lest you weren't already impressed by the frame-only price, get this: the top-end CAAD10 1 costs just US$3,199 with a Shimano Dura-Ace transmission, FSA SL-K carbon cranks and Shimano RS80 wheels while the 105-equipped CAAD10 5 is just US$1,499 – and all are offered with either standard or compact cranks.

Plus, there's virtually no waiting involved as the new CAAD10 models are already on Cannondale showroom floors.
