NAHBS 2012 part 2: Black Sheep to Wheel Fanatyk

Image 1 of 211

Japanese builder Cherubim never fails to impress at NAHBS and this year was no different.

Japanese builder Cherubim never fails to impress at NAHBS and this year was no different. (Image credit: Jonny Irick)
Image 2 of 211

Tom Ritchey celebrates his 40th year of building frames with a limited run of fillet brazed samples.

Tom Ritchey celebrates his 40th year of building frames with a limited run of fillet brazed samples. (Image credit: Jonny Irick)
Image 3 of 211

The custom stoker stem on this Paketa magnesium tandem started out life as a standard Ritchey stem.

The custom stoker stem on this Paketa magnesium tandem started out life as a standard Ritchey stem. (Image credit: Jonny Irick)
Image 4 of 211

The 44mm-diameter head tube on this Paketa magnesium tandem allows for a big top tube and down tube.

The 44mm-diameter head tube on this Paketa magnesium tandem allows for a big top tube and down tube. (Image credit: Jonny Irick)
Image 5 of 211

Paketa says this Ultegra Di2-equipped magnesium road tandem weighs just 23 pounds as seen here.

Paketa says this Ultegra Di2-equipped magnesium road tandem weighs just 23 pounds as seen here. (Image credit: Jonny Irick)
Image 6 of 211

Paketa's new tandem drive system puts all of the belts and chains on the same side, meaning you can use standard cranks instead of tandem-specific ones.

Paketa's new tandem drive system puts all of the belts and chains on the same side, meaning you can use standard cranks instead of tandem-specific ones. (Image credit: Jonny Irick)
Image 7 of 211

Paketa has carved a niche for itself with magnesium tubing.

Paketa has carved a niche for itself with magnesium tubing. (Image credit: Jonny Irick)
Image 8 of 211

Paketa built this magnesium hardtail with dual Gates belt drive gear ratios. The two rear cogs and chainrings are sized so that the same belt length can be used for both combinations.

Paketa built this magnesium hardtail with dual Gates belt drive gear ratios. The two rear cogs and chainrings are sized so that the same belt length can be used for both combinations. (Image credit: Jonny Irick)
Image 9 of 211

Mosaic Bicycles brought an army of custom bikes to NAHBS.

Mosaic Bicycles brought an army of custom bikes to NAHBS. (Image credit: Jonny Irick)
Image 10 of 211

Looking for a little more color in your life? Mosaic is ready for you.

Looking for a little more color in your life? Mosaic is ready for you. (Image credit: Jonny Irick)
Image 11 of 211

There's nothing like a splash of color to dress up titanium as found on this Mosaic road bike.

There's nothing like a splash of color to dress up titanium as found on this Mosaic road bike. (Image credit: Jonny Irick)
Image 12 of 211

Mosaic splits the seat stay to allow for belt drive use on this Rohloff-equipped bike.

Mosaic splits the seat stay to allow for belt drive use on this Rohloff-equipped bike. (Image credit: Jonny Irick)
Image 13 of 211

Mosaic fits its titanium 29er hardtail with a direct-mount front derailleur stub.

Mosaic fits its titanium 29er hardtail with a direct-mount front derailleur stub. (Image credit: Jonny Irick)
Image 14 of 211

Paketa's magnesium road tandems are now built with this custom chain stay yoke.

Paketa's magnesium road tandems are now built with this custom chain stay yoke. (Image credit: Jonny Irick)
Image 15 of 211

Sweet Wings tandem cranks?! Paketa says there are fewer than six of these in existence.

Sweet Wings tandem cranks?! Paketa says there are fewer than six of these in existence. (Image credit: Jonny Irick)
Image 16 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 17 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 18 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 19 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 20 of 211

Curtis Inglis is celebrating two decades of Retrotec this year.

Curtis Inglis is celebrating two decades of Retrotec this year. (Image credit: Jonny Irick)
Image 21 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 22 of 211

Retrotec offers six distinct frame styles of beach cruiser-inspired frames.

Retrotec offers six distinct frame styles of beach cruiser-inspired frames. (Image credit: Jonny Irick)
Image 23 of 211

The slick quick release mechanism on Paul Components' new Minimoto brake is easy to use with one hand.

The slick quick release mechanism on Paul Components' new Minimoto brake is easy to use with one hand. (Image credit: Jonny Irick)
Image 24 of 211

Paul Components' new Minimoto linear-pull brake is designed for use with road levers, making it a good choice for 'cross bikes.

Paul Components' new Minimoto linear-pull brake is designed for use with road levers, making it a good choice for 'cross bikes. (Image credit: Jonny Irick)
Image 25 of 211

Need a giant cage to hold your giant flask?

Need a giant cage to hold your giant flask? (Image credit: Jonny Irick)
Image 26 of 211

Paketa recently loaned this tandem out to a pair of Boulder, Colorado racers who brought home a national championship in return.

Paketa recently loaned this tandem out to a pair of Boulder, Colorado racers who brought home a national championship in return. (Image credit: Jonny Irick)
Image 27 of 211

Integrated seatmasts are nearly impervious to seatpost slip when remounting during 'cross races.

Integrated seatmasts are nearly impervious to seatpost slip when remounting during 'cross races. (Image credit: Jonny Irick)
Image 28 of 211

Mosaic dressed up this titanium 'cross racer with a bit of gold ano.

Mosaic dressed up this titanium 'cross racer with a bit of gold ano. (Image credit: Jonny Irick)
Image 29 of 211

This Independent Fabrications titanium hardtail could very well have done just fine with the standard brushed or blasted finish but it's so much more striking with paint.

This Independent Fabrications titanium hardtail could very well have done just fine with the standard brushed or blasted finish but it's so much more striking with paint. (Image credit: Jonny Irick)
Image 30 of 211

Custom paint looks all the more impressive when it's done all out.

Custom paint looks all the more impressive when it's done all out. (Image credit: Jonny Irick)
Image 31 of 211

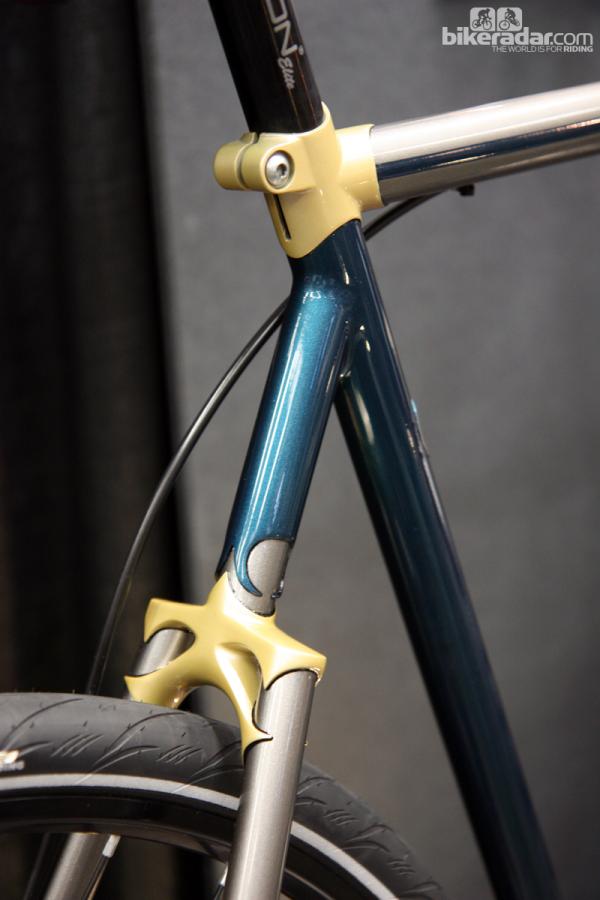

Independent Fabrications tops integrated seatmasts with its own head.

Independent Fabrications tops integrated seatmasts with its own head. (Image credit: Jonny Irick)
Image 32 of 211

Independent Fabrications is fully equipped to offer disc-equipped 'cross bikes right now.

Independent Fabrications is fully equipped to offer disc-equipped 'cross bikes right now. (Image credit: Jonny Irick)
Image 33 of 211

This Independent Fabrications disc-equipped 'cross bike is almost too pretty to get dirty.

This Independent Fabrications disc-equipped 'cross bike is almost too pretty to get dirty. (Image credit: Jonny Irick)
Image 34 of 211

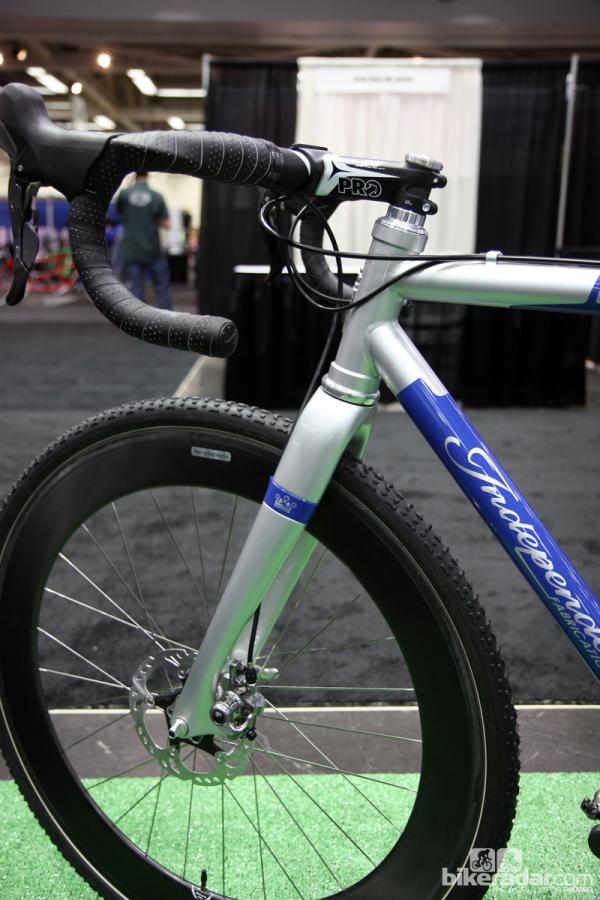

The Enve Composites tapered 'cross disc fork is painted to match on this Independent Fabrications rig.

The Enve Composites tapered 'cross disc fork is painted to match on this Independent Fabrications rig. (Image credit: Jonny Irick)
Image 35 of 211

Pass & Stow does nothing but handmade bicycle racks, built in San Francisco.

Pass & Stow does nothing but handmade bicycle racks, built in San Francisco. (Image credit: Jonny Irick)
Image 36 of 211

Check out the neat attachment method for this front rack made by Pass & Stow.

Check out the neat attachment method for this front rack made by Pass & Stow. (Image credit: Jonny Irick)
Image 37 of 211

Independent Fabrications did these graphics in real gold leaf.

Independent Fabrications did these graphics in real gold leaf. (Image credit: Jonny Irick)
Image 38 of 211

Independent Fabrications jumped on the 650b bandwagon but not how you would have expected.

Independent Fabrications jumped on the 650b bandwagon but not how you would have expected. (Image credit: Jonny Irick)
Image 39 of 211

Independent Fabrications bikes are often rolling pieces of art but this one also gets raced regularly, too.

Independent Fabrications bikes are often rolling pieces of art but this one also gets raced regularly, too. (Image credit: Jonny Irick)
Image 40 of 211

Check out the details on this custom painted Independent Fabrications hardtail.

Check out the details on this custom painted Independent Fabrications hardtail. (Image credit: Jonny Irick)
Image 41 of 211

Independent Fabrications built this monstercrosser for a gentleman who wanted to head into the wilderness to go fishing.

Independent Fabrications built this monstercrosser for a gentleman who wanted to head into the wilderness to go fishing. (Image credit: Jonny Irick)
Image 42 of 211

Colorado builder Mosaic brought this neatly welded titanium 29er hardtail to NAHBS.

Colorado builder Mosaic brought this neatly welded titanium 29er hardtail to NAHBS. (Image credit: Jonny Irick)
Image 43 of 211

The titanium stays drive the Fox rear shock with a carbon fiber link on this Moots MX Divide.

The titanium stays drive the Fox rear shock with a carbon fiber link on this Moots MX Divide. (Image credit: Jonny Irick)
Image 44 of 211

The Moots MX Divide will start shipping in April.

The Moots MX Divide will start shipping in April. (Image credit: Jonny Irick)
Image 45 of 211

Moots' MootoX RSL sports an elegant S-bend down tube.

Moots' MootoX RSL sports an elegant S-bend down tube. (Image credit: Jonny Irick)
Image 46 of 211

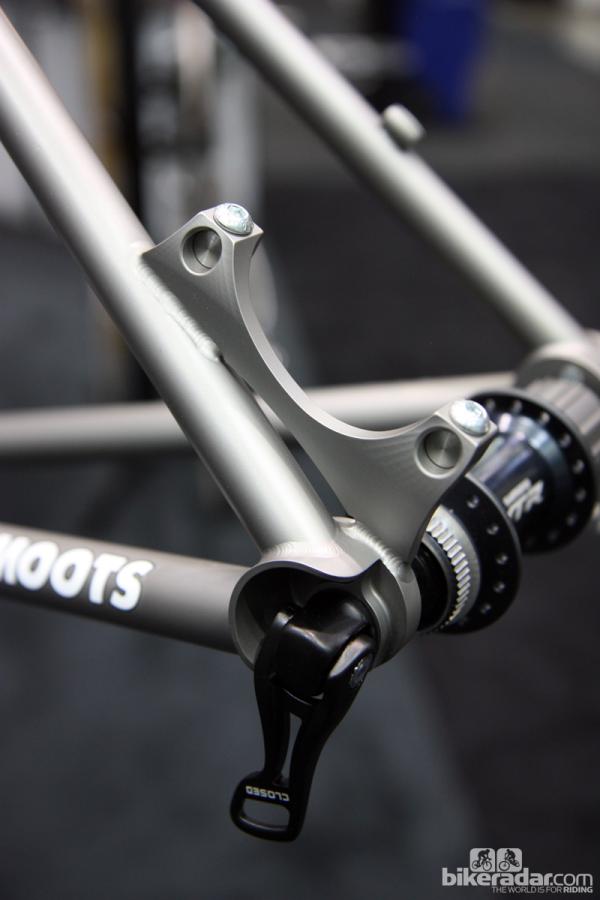

Moots will eventually offer its titanium frames with these optional thru-axle dropouts and post mount brake tabs. Note the replaceable threads, too.

Moots will eventually offer its titanium frames with these optional thru-axle dropouts and post mount brake tabs. Note the replaceable threads, too. (Image credit: Jonny Irick)
Image 47 of 211

Moots is currently testing thru-axle dropouts for its titanium hardtails. Don't expect consumer availability until the 2013 calendar year, though.

Moots is currently testing thru-axle dropouts for its titanium hardtails. Don't expect consumer availability until the 2013 calendar year, though. (Image credit: Jonny Irick)
Image 48 of 211

The stainless steel stays are left elegantly bare on this Independent Fabrications SSR Max.

The stainless steel stays are left elegantly bare on this Independent Fabrications SSR Max. (Image credit: Jonny Irick)
Image 49 of 211

Independent Fabrications brought this stunning SSR Max road racer built with bi-ovalized Columbus stainless steel tubing.

Independent Fabrications brought this stunning SSR Max road racer built with bi-ovalized Columbus stainless steel tubing. (Image credit: Jonny Irick)
Image 50 of 211

Independent Fabrications fits its SSR Max stainless steel road racer with a PressFit 30 bottom bracket shell.

Independent Fabrications fits its SSR Max stainless steel road racer with a PressFit 30 bottom bracket shell. (Image credit: Jonny Irick)
Image 51 of 211

SRAM designed these shifters for time trial use but there's no reason you couldn't use them for touring duty, too.

SRAM designed these shifters for time trial use but there's no reason you couldn't use them for touring duty, too. (Image credit: Jonny Irick)
Image 52 of 211

Ritchey designed the Double Switchback Breakaway tandem to work with either 700c road or 650b mountain bike wheels.

Ritchey designed the Double Switchback Breakaway tandem to work with either 700c road or 650b mountain bike wheels. (Image credit: Jonny Irick)
Image 53 of 211

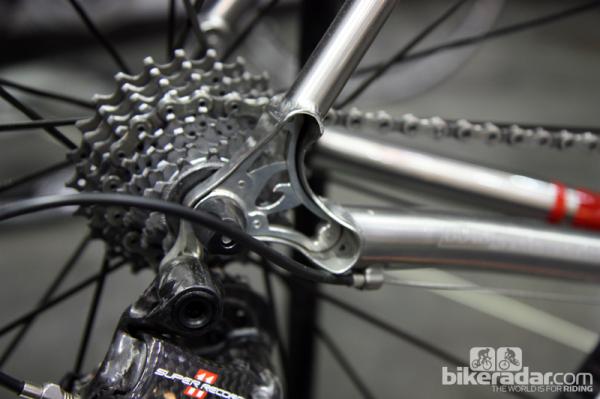

A short strut reinforces the dropout on this Independent Fabrications titanium 29er singlespeed.

A short strut reinforces the dropout on this Independent Fabrications titanium 29er singlespeed. (Image credit: Jonny Irick)
Image 54 of 211

All of Ritchey's limited-edition 40th-anniversary frames will be fillet brazed by Tom Ritchey himself and covered in this retro graphics package.

All of Ritchey's limited-edition 40th-anniversary frames will be fillet brazed by Tom Ritchey himself and covered in this retro graphics package. (Image credit: Jonny Irick)
Image 55 of 211

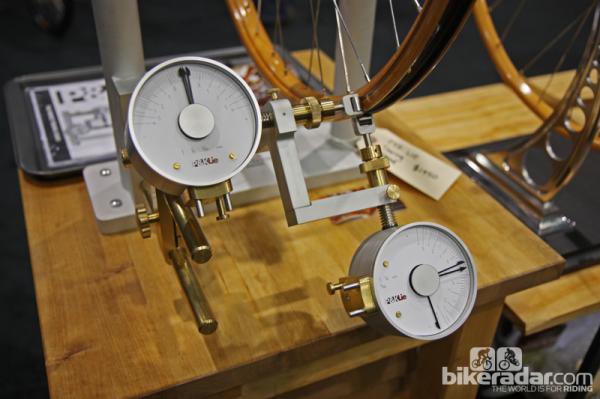

P&K Lie's truing stand dials indicate independent left and right (and in and out) runout. The non-linear gauges offer exceptionally fine resolution, too.

P&K Lie's truing stand dials indicate independent left and right (and in and out) runout. The non-linear gauges offer exceptionally fine resolution, too. (Image credit: Jonny Irick)
Image 56 of 211

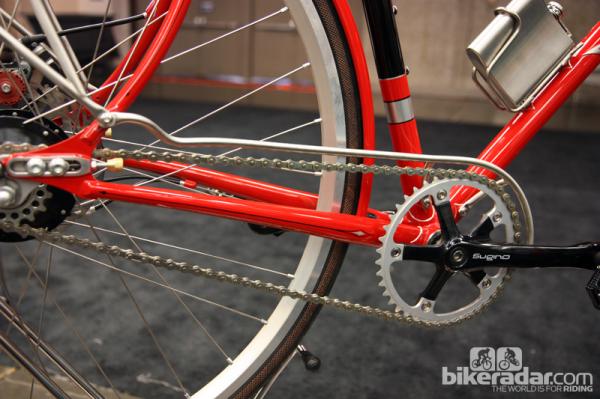

The beauty of custom-made stuff like this Vendetta chain guard is not being limited to standard brackets and fittings.

The beauty of custom-made stuff like this Vendetta chain guard is not being limited to standard brackets and fittings. (Image credit: Jonny Irick)
Image 57 of 211

We like the way Vendetta linked the bottom of the rear rack with the back of this chain guard.

We like the way Vendetta linked the bottom of the rear rack with the back of this chain guard. (Image credit: Jonny Irick)
Image 58 of 211

Vendetta brought this ornate townie to this year's NAHBS.

Vendetta brought this ornate townie to this year's NAHBS. (Image credit: Jonny Irick)
Image 59 of 211

Vendetta built an elegant disc mount into this steel fork.

Vendetta built an elegant disc mount into this steel fork. (Image credit: Jonny Irick)
Image 60 of 211

The curved seat tube isn't entirely necessary on this Six-Eleven track bike but it sure looks cool.

The curved seat tube isn't entirely necessary on this Six-Eleven track bike but it sure looks cool. (Image credit: Jonny Irick)
Image 61 of 211

Note the stealthy lugwork on this Six-Eleven track bike.

Note the stealthy lugwork on this Six-Eleven track bike. (Image credit: Jonny Irick)
Image 62 of 211

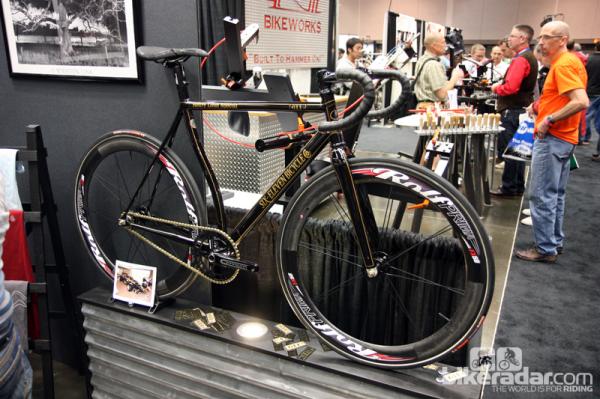

Six-Eleven Bicycle Co. fashioned this track bike after an old Formula 1 car.

Six-Eleven Bicycle Co. fashioned this track bike after an old Formula 1 car. (Image credit: Jonny Irick)
Image 63 of 211

Six-Eleven identifies each of its bikes with these numbered badges.

Six-Eleven identifies each of its bikes with these numbered badges. (Image credit: Jonny Irick)
Image 64 of 211

We're guessing Six-Eleven builder Aaron Dykstra skipped the coffee the day he ran the wires on this townie.

We're guessing Six-Eleven builder Aaron Dykstra skipped the coffee the day he ran the wires on this townie. (Image credit: Jonny Irick)
Image 65 of 211

Six-Eleven fitted this townie with gorgeous wishbone-style seat stays.

Six-Eleven fitted this townie with gorgeous wishbone-style seat stays. (Image credit: Jonny Irick)
Image 66 of 211

The light mount is built right into the underside of the stem on this Six-Eleven townie.

The light mount is built right into the underside of the stem on this Six-Eleven townie. (Image credit: Jonny Irick)
Image 67 of 211

Vendetta builder Garrett Clark crafted this bike for himself.

Vendetta builder Garrett Clark crafted this bike for himself. (Image credit: Jonny Irick)
Image 68 of 211

Vendetta dresses this bike up with a stainless steel down tube badge.

Vendetta dresses this bike up with a stainless steel down tube badge. (Image credit: Jonny Irick)
Image 69 of 211

P&K Lie's truing stand is truly astounding in its construction and design - but it'll cost you nearly US$2,000 through Wheel Fanatyk. Ouch.

P&K Lie's truing stand is truly astounding in its construction and design - but it'll cost you nearly US$2,000 through Wheel Fanatyk. Ouch. (Image credit: Jonny Irick)
Image 70 of 211

The new Wheel Fanatyk spoke tensiometer has a USB download port for storing wheel build information on your desktop computer.

The new Wheel Fanatyk spoke tensiometer has a USB download port for storing wheel build information on your desktop computer. (Image credit: Jonny Irick)
Image 71 of 211

Wheel Fanatyk's spoke tensiometer design has its roots in legendary wheel guru Jobst Brandt.

Wheel Fanatyk's spoke tensiometer design has its roots in legendary wheel guru Jobst Brandt. (Image credit: Jonny Irick)
Image 72 of 211

Wheel Fanatyk's new spoke tensiometer is based on the now defunct FSA design but with an aluminum base, higher accuracy gauge, and lower-friction internals for more consistent readings.

Wheel Fanatyk's new spoke tensiometer is based on the now defunct FSA design but with an aluminum base, higher accuracy gauge, and lower-friction internals for more consistent readings. (Image credit: Jonny Irick)
Image 73 of 211

These hubs are made by Curtis Odom Vintage Style Bicycle Parts.

These hubs are made by Curtis Odom Vintage Style Bicycle Parts. (Image credit: Jonny Irick)
Image 74 of 211

Wheel Fanatyk has added these trick wooden dishing tools to its collection. Check out the locking mechanism for the indicator rod.

Wheel Fanatyk has added these trick wooden dishing tools to its collection. Check out the locking mechanism for the indicator rod. (Image credit: Jonny Irick)
Image 75 of 211

Wheel Fanatyk now has carbon reinforced wooden clincher rims that can handle more reasonable pressures than before.

Wheel Fanatyk now has carbon reinforced wooden clincher rims that can handle more reasonable pressures than before. (Image credit: Jonny Irick)
Image 76 of 211

The rear brake housing is internally run on this Vendetta Cycles townie.

The rear brake housing is internally run on this Vendetta Cycles townie. (Image credit: Jonny Irick)
Image 77 of 211

A rear E3 LED light is integrated into the back of the custom rack on this Vendetta Cycles townie.

A rear E3 LED light is integrated into the back of the custom rack on this Vendetta Cycles townie. (Image credit: Jonny Irick)
Image 78 of 211

The over-and-under look on these Vendetta lugs is just an illusion.

The over-and-under look on these Vendetta lugs is just an illusion. (Image credit: Jonny Irick)
Image 79 of 211

Before and after - needless to say, Vendetta builder Garrett Clark spent a lot of time filing these lugs down.

Before and after - needless to say, Vendetta builder Garrett Clark spent a lot of time filing these lugs down. (Image credit: Jonny Irick)
Image 80 of 211

Check out the fork crown on this Six-Eleven townie, not to mention the slick internal wiring for the front light.

Check out the fork crown on this Six-Eleven townie, not to mention the slick internal wiring for the front light. (Image credit: Jonny Irick)
Image 81 of 211

Six-Eleven says this townie was built for a well-to-do ex-tech industry exec who wanted an over-the-top machine for fair weather cruising.

Six-Eleven says this townie was built for a well-to-do ex-tech industry exec who wanted an over-the-top machine for fair weather cruising. (Image credit: Jonny Irick)
Image 82 of 211

Signal Cycles showed off this gorgeous steel road bike at NAHBS.

Signal Cycles showed off this gorgeous steel road bike at NAHBS. (Image credit: Jonny Irick)
Image 83 of 211

Signal Cycles went all-out with the color matching on this road bike. The custom Wound-Up fork boasts a longer axle-to-crown so that bigger tires can be used. Note the position of the brake pads in the caliper slots.

Signal Cycles went all-out with the color matching on this road bike. The custom Wound-Up fork boasts a longer axle-to-crown so that bigger tires can be used. Note the position of the brake pads in the caliper slots. (Image credit: Jonny Irick)
Image 84 of 211

A neat stainless steel collar is brazed around the seat tube of this Signal Cycles road bike.

A neat stainless steel collar is brazed around the seat tube of this Signal Cycles road bike. (Image credit: Jonny Irick)
Image 85 of 211

Signal Cycles continues on with its Saltzman collection of stock bikes. This second version is available with Shimano 105 or Ultegra, or Campagnolo Athena build kits.

Signal Cycles continues on with its Saltzman collection of stock bikes. This second version is available with Shimano 105 or Ultegra, or Campagnolo Athena build kits. (Image credit: Jonny Irick)
Image 86 of 211

The hub and wheel stand attached to this Wheel Fanatyk wooden rim are made by Curtis Odom Vintage Style Bicycle Parts.

The hub and wheel stand attached to this Wheel Fanatyk wooden rim are made by Curtis Odom Vintage Style Bicycle Parts. (Image credit: Jonny Irick)
Image 87 of 211

The contrasting paint highlights the different frame sections on the new Ritchey Double Switchback Breakaway-style tandem frame.

The contrasting paint highlights the different frame sections on the new Ritchey Double Switchback Breakaway-style tandem frame. (Image credit: Jonny Irick)
Image 88 of 211

Ritchey will soon add a tandem version of its popular Breakaway range. Naturally, two cases will be required instead of one but it's still possible to sneak the whole thing through airport check-in without supplemental charges.

Ritchey will soon add a tandem version of its popular Breakaway range. Naturally, two cases will be required instead of one but it's still possible to sneak the whole thing through airport check-in without supplemental charges. (Image credit: Jonny Irick)
Image 89 of 211

Ritchey designed the Double Switchback Breakaway tandem to work with either 700c road or 650b mountain bike wheels.

Ritchey designed the Double Switchback Breakaway tandem to work with either 700c road or 650b mountain bike wheels. (Image credit: Jonny Irick)
Image 90 of 211

The forged head tube on the new Ritchey Road Logic is sized for straight 1 1/8" steerers.

The forged head tube on the new Ritchey Road Logic is sized for straight 1 1/8" steerers. (Image credit: Jonny Irick)
Image 91 of 211

Ritchey will add the triple butted steel Road Logic to the P-29 and Swiss Cross models introduced last year. Retail cost will be a reasonable US$1,199 for the frame, fork, and headset beginning in late July.

Ritchey will add the triple butted steel Road Logic to the P-29 and Swiss Cross models introduced last year. Retail cost will be a reasonable US$1,199 for the frame, fork, and headset beginning in late July. (Image credit: Jonny Irick)
Image 92 of 211

This seat cluster was fillet brazed by Tom Ritchey himself. Now you can get the same treatment - but you'd better act quickly.

This seat cluster was fillet brazed by Tom Ritchey himself. Now you can get the same treatment - but you'd better act quickly. (Image credit: Jonny Irick)
Image 93 of 211

Internal routing is used for both the brake and the Di2 wiring on this Signal Cycles road bike.

Internal routing is used for both the brake and the Di2 wiring on this Signal Cycles road bike. (Image credit: Jonny Irick)
Image 94 of 211

We can't help but wonder how many people actually noticed the splash of color applied to the 3T bar behind the peekaboo faceplate on this Signal Cycles road bike.

We can't help but wonder how many people actually noticed the splash of color applied to the 3T bar behind the peekaboo faceplate on this Signal Cycles road bike. (Image credit: Jonny Irick)
Image 95 of 211

Schmidt dynamo hubs are as popular as ever at NAHBS as seen on this Six-Eleven townie.

Schmidt dynamo hubs are as popular as ever at NAHBS as seen on this Six-Eleven townie. (Image credit: Jonny Irick)
Image 96 of 211

Awesome.

Awesome. (Image credit: Jonny Irick)
Image 97 of 211

Beautiful finish work on the front end of this Six-Eleven 'cross bike.

Beautiful finish work on the front end of this Six-Eleven 'cross bike. (Image credit: Jonny Irick)
Image 98 of 211

Six-Eleven finished this 'cross race in appropriate earthtones.

Six-Eleven finished this 'cross race in appropriate earthtones. (Image credit: Jonny Irick)
Image 99 of 211

This custom Six-Eleven 'cross bike is finished with hundreds of hand-applied dots.

This custom Six-Eleven 'cross bike is finished with hundreds of hand-applied dots. (Image credit: Jonny Irick)
Image 100 of 211

Roanoke, Virginia-based Six-Eleven Bicycle Co. continues to impress at NAHBS.

Roanoke, Virginia-based Six-Eleven Bicycle Co. continues to impress at NAHBS. (Image credit: Jonny Irick)
Image 101 of 211

The Signal Cycles road bike was striking enough but check out this repair stand by EVT!

The Signal Cycles road bike was striking enough but check out this repair stand by EVT! (Image credit: Jonny Irick)
Image 102 of 211

Signal Cycles routes the front brake cable through the stem on this townie.

Signal Cycles routes the front brake cable through the stem on this townie. (Image credit: Jonny Irick)
Image 103 of 211

Check out the detail work on this Signal Cycles townie.

Check out the detail work on this Signal Cycles townie. (Image credit: Jonny Irick)
Image 104 of 211

A beautiful rear rack is fitted to the back of this Signal Cycles townie.

A beautiful rear rack is fitted to the back of this Signal Cycles townie. (Image credit: Jonny Irick)
Image 105 of 211

Signal Cycles is always good for a stunning townie at NAHBS.

Signal Cycles is always good for a stunning townie at NAHBS. (Image credit: Jonny Irick)
Image 106 of 211

This logo was originally done by cycling legene Jobst Brandt, according to Ritchey PR man Sean Coffey.

This logo was originally done by cycling legene Jobst Brandt, according to Ritchey PR man Sean Coffey. (Image credit: Jonny Irick)
Image 107 of 211

Paul Components will soon offer a new cassette rear hub built with Industry Nine guts but sized with a 170mm OLD for use with snow bikes. This 135mm sample won't make production just yet.

Paul Components will soon offer a new cassette rear hub built with Industry Nine guts but sized with a 170mm OLD for use with snow bikes. This 135mm sample won't make production just yet. (Image credit: Jonny Irick)
Image 108 of 211

The DeLorean seemed like an apt backdrop for these stainless steel road bikes, no?

The DeLorean seemed like an apt backdrop for these stainless steel road bikes, no? (Image credit: Jonny Irick)
Image 109 of 211

A new option for Cielo's Sportif bike is painted-to-match fenders.

A new option for Cielo's Sportif bike is painted-to-match fenders. (Image credit: Jonny Irick)
Image 110 of 211

This Cielo road bike boasts a timeless aesthetic.

This Cielo road bike boasts a timeless aesthetic. (Image credit: Jonny Irick)
Image 111 of 211

S-bend stays are used on Cielo's new Cross Racer.

S-bend stays are used on Cielo's new Cross Racer. (Image credit: Jonny Irick)
Image 112 of 211

Cielo fits the new Cross Racer with a 44mm head tube to accommodate both straight and tapered steerers. The new i8 headset in this particular bike is sized for a 1 1/8-to-1 1/4" steerer.

Cielo fits the new Cross Racer with a 44mm head tube to accommodate both straight and tapered steerers. The new i8 headset in this particular bike is sized for a 1 1/8-to-1 1/4" steerer. (Image credit: Jonny Irick)
Image 113 of 211

The new Cielo Cross Racer will be available to consumers beginning this June - well in advance of the race season.

The new Cielo Cross Racer will be available to consumers beginning this June - well in advance of the race season. (Image credit: Jonny Irick)
Image 114 of 211

Cielo's new Cross Racer is dressed up with this machined stainless steel seat stay bridge.

Cielo's new Cross Racer is dressed up with this machined stainless steel seat stay bridge. (Image credit: Jonny Irick)
Image 115 of 211

Cielo's 29er hardtail gets S-bend stays for 2012.

Cielo's 29er hardtail gets S-bend stays for 2012. (Image credit: Jonny Irick)
Image 116 of 211

Chris King painted this mixed InSet just for the show. Sorry, it's not a production item.

Chris King painted this mixed InSet just for the show. Sorry, it's not a production item. (Image credit: Jonny Irick)
Image 117 of 211

Cielo's 29er hardtail can be built up for geared or singlespeed use.

Cielo's 29er hardtail can be built up for geared or singlespeed use. (Image credit: Jonny Irick)
Image 118 of 211

Cielo is now producing all of its dropouts in house with the exception of these rockers from Paragon Machine Works on the hardtail 29er.

Cielo is now producing all of its dropouts in house with the exception of these rockers from Paragon Machine Works on the hardtail 29er. (Image credit: Jonny Irick)
Image 119 of 211

Not surprisingly, Cherubim's incredible track bike generated a steady stream of onlookers.

Not surprisingly, Cherubim's incredible track bike generated a steady stream of onlookers. (Image credit: Jonny Irick)
Image 120 of 211

Long-time Canadian builder Chris Dekerf brought this custom painted Elysium titanium hardtail to this year's NAHBS.

Long-time Canadian builder Chris Dekerf brought this custom painted Elysium titanium hardtail to this year's NAHBS. (Image credit: Jonny Irick)
Image 121 of 211

The segmented seat stays are a signature feature on Dekerf frames. Steel ones get an even more elaborate pierced layout.

The segmented seat stays are a signature feature on Dekerf frames. Steel ones get an even more elaborate pierced layout. (Image credit: Jonny Irick)
Image 122 of 211

Chris Dekerf says these days he's more of a full custom shop than a production one. The SST is one of the only 'stock' frames he still builds on a regular basis. Check out the gorgeous pierced seat stays.

Chris Dekerf says these days he's more of a full custom shop than a production one. The SST is one of the only 'stock' frames he still builds on a regular basis. Check out the gorgeous pierced seat stays. (Image credit: Jonny Irick)
Image 123 of 211

Dekerf left the stays bare titanium on this gorgeous custom road bike.

Dekerf left the stays bare titanium on this gorgeous custom road bike. (Image credit: Jonny Irick)
Image 124 of 211

Dekerf brought this custom road bike to show off what's possible in his shop. Internal brake and Di2 wire routing? Check. Integrated seatmast? Check, check.

Dekerf brought this custom road bike to show off what's possible in his shop. Internal brake and Di2 wire routing? Check. Integrated seatmast? Check, check. (Image credit: Jonny Irick)
Image 125 of 211

The battery is mounted underneath the chain stay on this custom Dekerf titanium road bike.

The battery is mounted underneath the chain stay on this custom Dekerf titanium road bike. (Image credit: Jonny Irick)
Image 126 of 211

This pierced seat stay joint has been a long-time Dekerf signature feature.

This pierced seat stay joint has been a long-time Dekerf signature feature. (Image credit: Jonny Irick)
Image 127 of 211

Beautiful fillet brazed joints adorn this custom Dekerf SST 29er.

Beautiful fillet brazed joints adorn this custom Dekerf SST 29er. (Image credit: Jonny Irick)
Image 128 of 211

Dekerf included internal derailleur cable routing for this one-off fillet brazed 29er hardtail.

Dekerf included internal derailleur cable routing for this one-off fillet brazed 29er hardtail. (Image credit: Jonny Irick)
Image 129 of 211

Chris Dekerf says this was his "poker" paint job.

Chris Dekerf says this was his "poker" paint job. (Image credit: Jonny Irick)
Image 130 of 211

Chris Dekerf showed off this gorgeous fillet brazed steel 29er built with Reynolds 853 tubing.

Chris Dekerf showed off this gorgeous fillet brazed steel 29er built with Reynolds 853 tubing. (Image credit: Jonny Irick)
Image 131 of 211

Dekerf gave this fillet brazed steel 29er a 'tuning' segmented fork to go along with the pierced seat stays.

Dekerf gave this fillet brazed steel 29er a 'tuning' segmented fork to go along with the pierced seat stays. (Image credit: Jonny Irick)
Image 132 of 211

Dekerf once built one-piece bars like this in titanium with an internal wedge system. After a long hiatus, the concept is back but this time in chromoly with a more conventional clamp.

Dekerf once built one-piece bars like this in titanium with an internal wedge system. After a long hiatus, the concept is back but this time in chromoly with a more conventional clamp. (Image credit: Jonny Irick)
Image 133 of 211

The top tube and stem on this Cherubim track bike form a perfectly uninterrupted arc.

The top tube and stem on this Cherubim track bike form a perfectly uninterrupted arc. (Image credit: Jonny Irick)
Image 134 of 211

The tube ends on this Cherubim track bike are perfectly coped to leave just the slightest gap when the front wheel is pointed straight ahead.

The tube ends on this Cherubim track bike are perfectly coped to leave just the slightest gap when the front wheel is pointed straight ahead. (Image credit: Jonny Irick)
Image 135 of 211

Black Sheep used several techniques for the graphics on this snow bike. Note the blasted-on snowflakes but also how one side of the bike is polished while the other is bead blasted.

Black Sheep used several techniques for the graphics on this snow bike. Note the blasted-on snowflakes but also how one side of the bike is polished while the other is bead blasted. (Image credit: Jonny Irick)
Image 136 of 211

Snow bikes are once again a hot commodity at NAHBS. This titanium example is made by Black Sheep Bikes in Fort Collins, Colorado.

Snow bikes are once again a hot commodity at NAHBS. This titanium example is made by Black Sheep Bikes in Fort Collins, Colorado. (Image credit: Jonny Irick)
Image 137 of 211

Black Sheep reinforces the snow bike truss fork with this little welded-on plate.

Black Sheep reinforces the snow bike truss fork with this little welded-on plate. (Image credit: Jonny Irick)
Image 138 of 211

The titanium truss fork on the front of this Black Sheep snow bike leaves plenty of room for the enormous 45NRTH front tire.

The titanium truss fork on the front of this Black Sheep snow bike leaves plenty of room for the enormous 45NRTH front tire. (Image credit: Jonny Irick)
Image 139 of 211

Telescoping chain stays on this Black Sheep 36er allows the belt to be tensioned appropriately. And instead of including a split dropout to feed the belt through, Black Sheep splits the seat stay up near the seat tube.

Telescoping chain stays on this Black Sheep 36er allows the belt to be tensioned appropriately. And instead of including a split dropout to feed the belt through, Black Sheep splits the seat stay up near the seat tube. (Image credit: Jonny Irick)
Image 140 of 211

Black Sheep Bikes always decorates each of its creations with a beautiful head tube badge.

Black Sheep Bikes always decorates each of its creations with a beautiful head tube badge. (Image credit: Jonny Irick)
Image 141 of 211

If 29ers are faster, then 36ers must be way faster, right? Whether or not that's true, this Black Sheep sure is stunning.

If 29ers are faster, then 36ers must be way faster, right? Whether or not that's true, this Black Sheep sure is stunning. (Image credit: Jonny Irick)
Image 142 of 211

Black Sheep Bikes adds one of its trademark truss-style titanium forks to this 36er.

Black Sheep Bikes adds one of its trademark truss-style titanium forks to this 36er. (Image credit: Jonny Irick)
Image 143 of 211

Ati Bekes is an interior finish carpenter by trade but wanted to build a unique beach cruiser for his wife, Christine.

Ati Bekes is an interior finish carpenter by trade but wanted to build a unique beach cruiser for his wife, Christine. (Image credit: Jonny Irick)
Image 144 of 211

The laminated plywood is reinforced with carbon fiber to allow for the seat stay-less design of this Bekes Wooden Bicycles beach cruiser.

The laminated plywood is reinforced with carbon fiber to allow for the seat stay-less design of this Bekes Wooden Bicycles beach cruiser. (Image credit: Jonny Irick)
Image 145 of 211

Bekes Wooden Bicycles creator Ati Bekes says no beach cruiser would be complete without a way to transport a can of beer. Check out the padlock, too.

Bekes Wooden Bicycles creator Ati Bekes says no beach cruiser would be complete without a way to transport a can of beer. Check out the padlock, too. (Image credit: Jonny Irick)
Image 146 of 211

Yet another gorgeous themed head tube badge from Black Sheep Bikes, this time adorning the front of a snow bike.

Yet another gorgeous themed head tube badge from Black Sheep Bikes, this time adorning the front of a snow bike. (Image credit: Jonny Irick)
Image 147 of 211

The elongated crown on this Cherubim doesn't really serve much purpose but it's an interesting visual detail nonetheless.

The elongated crown on this Cherubim doesn't really serve much purpose but it's an interesting visual detail nonetheless. (Image credit: Jonny Irick)
Image 148 of 211

The seatpost stub on Cherubim's track bike certainly doesn't offer much adjustment but who cares - it's beautiful!

The seatpost stub on Cherubim's track bike certainly doesn't offer much adjustment but who cares - it's beautiful! (Image credit: Jonny Irick)
Image 149 of 211

This single piece of steel caps both seat stays on Cherubim's remarkable track bike.

This single piece of steel caps both seat stays on Cherubim's remarkable track bike. (Image credit: Jonny Irick)
Image 150 of 211

Cherubim finished its striking track bike with fully polished Campagnolo clip-and-strap pedals.

Cherubim finished its striking track bike with fully polished Campagnolo clip-and-strap pedals. (Image credit: Jonny Irick)
Image 151 of 211

Cups are integrated into the ends of the head tube on this Cherubim track bike.

Cups are integrated into the ends of the head tube on this Cherubim track bike. (Image credit: Jonny Irick)
Image 152 of 211

Cherubim brought this amazing track bike to this year's NAHBS.

Cherubim brought this amazing track bike to this year's NAHBS. (Image credit: Jonny Irick)
Image 153 of 211

Cherubim finishes off its stunning track bike with these tidy dropouts.

Cherubim finishes off its stunning track bike with these tidy dropouts. (Image credit: Jonny Irick)
Image 154 of 211

Cherubim fitted its track bike with a Phil Wood Philcentric eccentric bottom bracket.

Cherubim fitted its track bike with a Phil Wood Philcentric eccentric bottom bracket. (Image credit: Jonny Irick)
Image 155 of 211

Cherubim welded the bars right to the end of the stem, which is itself essentially an extension of the top tube.

Cherubim welded the bars right to the end of the stem, which is itself essentially an extension of the top tube. (Image credit: Jonny Irick)
Image 156 of 211

Note the elegant cable routing on this Cherubim for the Shimano Alfine rear hub.

Note the elegant cable routing on this Cherubim for the Shimano Alfine rear hub. (Image credit: Jonny Irick)
Image 157 of 211

Japanese outfit Cherubim brought this Shimano Alfine-equipped runabout.

Japanese outfit Cherubim brought this Shimano Alfine-equipped runabout. (Image credit: Jonny Irick)
Image 158 of 211

Even a thick coat of paint can't hide the incredible lugwork of Mark DiNucci.

Even a thick coat of paint can't hide the incredible lugwork of Mark DiNucci. (Image credit: Jonny Irick)
Image 159 of 211

As always, finish work on this DiNucci is impeccable.

As always, finish work on this DiNucci is impeccable. (Image credit: Jonny Irick)
Image 160 of 211

Guru does full custom geometry in aero platforms, too.

Guru does full custom geometry in aero platforms, too. (Image credit: Jonny Irick)
Image 161 of 211

Form Cycles custom built the post mount caliper block on this titanium snow bike.

Form Cycles custom built the post mount caliper block on this titanium snow bike. (Image credit: Jonny Irick)
Image 162 of 211

One lucky Form Cycles customer will finally get to take this home once NAHBS wraps up on Sunday.

One lucky Form Cycles customer will finally get to take this home once NAHBS wraps up on Sunday. (Image credit: Jonny Irick)
Image 163 of 211

Form Cycles tucked the rear brake underneath the chain stays on this custom road bike.

Form Cycles tucked the rear brake underneath the chain stays on this custom road bike. (Image credit: Jonny Irick)
Image 164 of 211

This elegantly machined titanium 44mm-diameter head tube nicely finishes off the front of this Form Cycles Prevail hardtail.

This elegantly machined titanium 44mm-diameter head tube nicely finishes off the front of this Form Cycles Prevail hardtail. (Image credit: Jonny Irick)
Image 165 of 211

Form Cycles showed off this nicely finished titanium singlespeed.

Form Cycles showed off this nicely finished titanium singlespeed. (Image credit: Jonny Irick)
Image 166 of 211

Rob English doesn’t just build wildly integrated and ultralight road and mountain bikes. He's perfectly capable of doing more utilitarian bikes, too.

Rob English doesn’t just build wildly integrated and ultralight road and mountain bikes. He's perfectly capable of doing more utilitarian bikes, too. (Image credit: Jonny Irick)
Image 167 of 211

The stem and steerer are built as one piece on this Rob English Project Right a la Cannondale.

The stem and steerer are built as one piece on this Rob English Project Right a la Cannondale. (Image credit: Jonny Irick)
Image 168 of 211

Rob English continues to push the envelope of steel construction with this striking one-sided steel road bike.

Rob English continues to push the envelope of steel construction with this striking one-sided steel road bike. (Image credit: Jonny Irick)
Image 169 of 211

The custom rear hub places the cog outboard of the stays on this Rob English Project Right.

The custom rear hub places the cog outboard of the stays on this Rob English Project Right. (Image credit: Jonny Irick)
Image 170 of 211

Look past the incredible paint job and this Rob English creation looks normal enough - but flip it around and there's no fork leg or stays on the non-driveside.

Look past the incredible paint job and this Rob English creation looks normal enough - but flip it around and there's no fork leg or stays on the non-driveside. (Image credit: Jonny Irick)
Image 171 of 211

Naturally, Rob English built a one-sided fork to match the rear end. Note the inverted pinch bolt setup in the crown, too.

Naturally, Rob English built a one-sided fork to match the rear end. Note the inverted pinch bolt setup in the crown, too. (Image credit: Jonny Irick)
Image 172 of 211

Custom clamps offset the Cannondale Lefty fork just enough to clear fat tires on this Form Cycles snow bike.

Custom clamps offset the Cannondale Lefty fork just enough to clear fat tires on this Form Cycles snow bike. (Image credit: Jonny Irick)
Image 173 of 211

Form Cycles is located in Sedona, Arizona but that doesn't mean they can’t do a snow bike when asked.

Form Cycles is located in Sedona, Arizona but that doesn't mean they can’t do a snow bike when asked. (Image credit: Jonny Irick)
Image 174 of 211

Guru says its Photon road bike is far and away the nicest riding chassis in its catalog.

Guru says its Photon road bike is far and away the nicest riding chassis in its catalog. (Image credit: Jonny Irick)
Image 175 of 211

Guru acknowledges the tube-to-tube construction on the ultralight Photon might be viewed as old-school by some but it's also what allows for such a degree of customization.

Guru acknowledges the tube-to-tube construction on the ultralight Photon might be viewed as old-school by some but it's also what allows for such a degree of customization. (Image credit: Jonny Irick)
Image 176 of 211

Guru built this titanium crit racer for a dealer in Mill Valley, California who wanted a super stiff chassis that could withstand crashes. The down tube is a whopping 44mm across while the chain stays measure a full 25mm in width.

Guru built this titanium crit racer for a dealer in Mill Valley, California who wanted a super stiff chassis that could withstand crashes. The down tube is a whopping 44mm across while the chain stays measure a full 25mm in width. (Image credit: Jonny Irick)
Image 177 of 211

Guru calls this its 'G-Unit' dropout.

Guru calls this its 'G-Unit' dropout. (Image credit: Jonny Irick)
Image 178 of 211

Guru designed the Evolo-R for stiffness above all else.

Guru designed the Evolo-R for stiffness above all else. (Image credit: Jonny Irick)
Image 179 of 211

Guru Cycleworks is the metal-based division of Canadian frame company Guru.

Guru Cycleworks is the metal-based division of Canadian frame company Guru. (Image credit: Jonny Irick)
Image 180 of 211

Canadian company Guru is best known for its carbon road and aero bikes but it also does mountain bikes.

Canadian company Guru is best known for its carbon road and aero bikes but it also does mountain bikes. (Image credit: Jonny Irick)
Image 181 of 211

The custom collar on this Guru titanium 29er incorporates a slick rubber gasket to help seal out moisture.

The custom collar on this Guru titanium 29er incorporates a slick rubber gasket to help seal out moisture. (Image credit: Jonny Irick)
Image 182 of 211

44mm-diameter head tubes as found on this Form Cycles mountain bike are quickly becoming the standard option for smaller builders.

44mm-diameter head tubes as found on this Form Cycles mountain bike are quickly becoming the standard option for smaller builders. (Image credit: Jonny Irick)
Image 183 of 211

Form Cycles built this stainless steel full-suspension bike for a customer who wanted something a little stiffer than titanium.

Form Cycles built this stainless steel full-suspension bike for a customer who wanted something a little stiffer than titanium. (Image credit: Jonny Irick)
Image 184 of 211

Form Cycles built a bit of suspension into the rear end of this custom snow bike. The simple setup comprises just a pair of overlapping titanium tubes, a Delrin sleeve, and a steel coil spring for about one inch of travel.

Form Cycles built a bit of suspension into the rear end of this custom snow bike. The simple setup comprises just a pair of overlapping titanium tubes, a Delrin sleeve, and a steel coil spring for about one inch of travel. (Image credit: Jonny Irick)
Image 185 of 211

Wait, what? Fairwheel Bikes in Arizona commissioned Rob English to build a one-sided road bike to serve as the canvas for artist Geoff McFetridge. English says it feels surprisingly normal out on the road.

Wait, what? Fairwheel Bikes in Arizona commissioned Rob English to build a one-sided road bike to serve as the canvas for artist Geoff McFetridge. English says it feels surprisingly normal out on the road. (Image credit: Jonny Irick)
Image 186 of 211

This doesn't look like it should work but Rob English says it does. The Niner eccentric bottom bracket allows for adjustable belt tension and it's impressively light, too.

This doesn't look like it should work but Rob English says it does. The Niner eccentric bottom bracket allows for adjustable belt tension and it's impressively light, too. (Image credit: Jonny Irick)
Image 187 of 211

This one-piece carbon fiber bar and stem look standard enough even with the custom paint job…

This one-piece carbon fiber bar and stem look standard enough even with the custom paint job… (Image credit: Jonny Irick)
Image 188 of 211

In typical fashion, seat stays are impossibly slender on this English Cycles steel 29er hardtail singlespeed.

In typical fashion, seat stays are impossibly slender on this English Cycles steel 29er hardtail singlespeed. (Image credit: Jonny Irick)
Image 189 of 211

English claims this steel 29er belt-drive singlespeed weighs just 18 pounds.

English claims this steel 29er belt-drive singlespeed weighs just 18 pounds. (Image credit: Jonny Irick)
Image 190 of 211

The seat stays on the English 29er are necessarily asymmetrical in order to make room for the chain stay-mounted disc caliper.

The seat stays on the English 29er are necessarily asymmetrical in order to make room for the chain stay-mounted disc caliper. (Image credit: Jonny Irick)
Image 191 of 211

English built a matching one-piece bar and stem for his sleek 29er hardtail.

English built a matching one-piece bar and stem for his sleek 29er hardtail. (Image credit: Jonny Irick)
Image 192 of 211

Is it a giant Enduro bottom bracket or a miniature Rotor crank?

Is it a giant Enduro bottom bracket or a miniature Rotor crank? (Image credit: Jonny Irick)
Image 193 of 211

Guru's custom options for titanium tubing are impressively generous, from tubing diameter to wall thickness.

Guru's custom options for titanium tubing are impressively generous, from tubing diameter to wall thickness. (Image credit: Jonny Irick)
Image 194 of 211

This raw seat cluster highlights the amazing craftsmanship of Mark DiNucci.

This raw seat cluster highlights the amazing craftsmanship of Mark DiNucci. (Image credit: Jonny Irick)
Image 195 of 211

DiNucci files the points of the lugs to impossibly delicate thicknesses.

DiNucci files the points of the lugs to impossibly delicate thicknesses. (Image credit: Jonny Irick)
Image 196 of 211

DiNucci displayed this raw lugged frame to show off his impressive skills.

DiNucci displayed this raw lugged frame to show off his impressive skills. (Image credit: Jonny Irick)
Image 197 of 211

Check out how perfect this brazed dropout is on this raw DiNucci frame. It almost seems a shame to cover such a thing with paint.

Check out how perfect this brazed dropout is on this raw DiNucci frame. It almost seems a shame to cover such a thing with paint. (Image credit: Jonny Irick)
Image 198 of 211

This sleek 'Egg Brake' is made by Simmkins Design Group, who also makes a more conventional dual-pivot setup for general road riding.

This sleek 'Egg Brake' is made by Simmkins Design Group, who also makes a more conventional dual-pivot setup for general road riding. (Image credit: Jonny Irick)
Image 199 of 211

…but look underneath and you can see the custom reinforced recess for the Di2 box.

…but look underneath and you can see the custom reinforced recess for the Di2 box. (Image credit: Jonny Irick)
Image 200 of 211

Front shifts generally aren't nearly as frequent as rear ones so Rob English guts the left-hand SRAM Red shifter and uses this ultralight carbon fiber down tube-mounted lever instead.

Front shifts generally aren't nearly as frequent as rear ones so Rob English guts the left-hand SRAM Red shifter and uses this ultralight carbon fiber down tube-mounted lever instead. (Image credit: Jonny Irick)
Image 201 of 211

Ultra-spindly seat stays aren't the exclusive realm of carbon fiber as Rob English demonstrates with this ultralight steel road bike.

Ultra-spindly seat stays aren't the exclusive realm of carbon fiber as Rob English demonstrates with this ultralight steel road bike. (Image credit: Jonny Irick)
Image 202 of 211

BTP hoods cover the SRAM Red levers on this Rob English ultralight road bike.

BTP hoods cover the SRAM Red levers on this Rob English ultralight road bike. (Image credit: Jonny Irick)
Image 203 of 211

Rob English says he actually regularly races this ultralight steel road bike. How light, you ask? Try 4.9kg (10.8lb, claimed).

Rob English says he actually regularly races this ultralight steel road bike. How light, you ask? Try 4.9kg (10.8lb, claimed). (Image credit: Jonny Irick)
Image 204 of 211

Look closely and you'll see plastic limit screws on this Rob English ultralight steel road racer.

Look closely and you'll see plastic limit screws on this Rob English ultralight steel road racer. (Image credit: Jonny Irick)
Image 205 of 211

Carbon fiber Lightning crankarms are fitted with a carbon fiber spider and carbon fiber chainrings on this ultralight Rob English bike. What, no carbon chainring bolts?

Carbon fiber Lightning crankarms are fitted with a carbon fiber spider and carbon fiber chainrings on this ultralight Rob English bike. What, no carbon chainring bolts? (Image credit: Jonny Irick)
Image 206 of 211

Rob English says these carbon fiber chainrings actually shift reasonably well and have been holding up ok, too.

Rob English says these carbon fiber chainrings actually shift reasonably well and have been holding up ok, too. (Image credit: Jonny Irick)
Image 207 of 211

Craig Edwards' eebrakes are the natural choice for anyone seeking an ultralight set of road calipers but unwilling to compromise on power and modulation. Not how insanely tiny the stays are on this Rob English machine.

Craig Edwards' eebrakes are the natural choice for anyone seeking an ultralight set of road calipers but unwilling to compromise on power and modulation. Not how insanely tiny the stays are on this Rob English machine. (Image credit: Jonny Irick)
Image 208 of 211

See that tiny micro-USB port integrated into the seatmast head? That's the built-in charge port for the internal Di2 battery. Slick.

See that tiny micro-USB port integrated into the seatmast head? That's the built-in charge port for the internal Di2 battery. Slick. (Image credit: Jonny Irick)
Image 209 of 211

Pinching down a steel head tube to reduce its frontal area sounds simple in theory but in practice, it's very difficult to do so while keeping the ends concentric and round - just ask Rob English.

Pinching down a steel head tube to reduce its frontal area sounds simple in theory but in practice, it's very difficult to do so while keeping the ends concentric and round - just ask Rob English. (Image credit: Jonny Irick)
Image 210 of 211

This is Rob English's interpretation of an aero road bike crafted in steel.

This is Rob English's interpretation of an aero road bike crafted in steel. (Image credit: Jonny Irick)
Image 211 of 211

Mark DiNucci's bikes trade flash for artisanal perfection. Last year he won the NAHBS award for best of show, two years ago for best lugged frame, and for good reason.

Mark DiNucci's bikes trade flash for artisanal perfection. Last year he won the NAHBS award for best of show, two years ago for best lugged frame, and for good reason. (Image credit: Jonny Irick)

This article originally published on BikeRadar

I'm now in my seventh year of covering the North American Handmade Bicycle Show and even in its humble beginnings – first in Houston, then two years in a dingy glorified tent in San Jose – it's never ceased to impress.

For sure a major part of the story of any handbuilt bicycle is the builder behind the machine: the personality, the artistry, the philosophy behind everything they do.

We'll get to some of those stories soon enough but we all know what you came here for: the bikes! So for now, sit back, relax, and enjoy this enormous image gallery from the first day of the show. Hope you didn't plan on getting much done today…
