Pro bike: Joaquim Rodriguez's Katusha Canyon Aeroad CF

Image 1 of 24

2013 UCI WorldTour leader Joaquim Rodriguez (Katusha) will race at the Giro d'Italia on this custom painted Canyon Aeroad CF

2013 UCI WorldTour leader Joaquim Rodriguez (Katusha) will race at the Giro d'Italia on this custom painted Canyon Aeroad CF (Image credit: James Huang)
Image 2 of 24

Shimano Dura-Ace Di2 9070 derailleurs front and rear

Shimano Dura-Ace Di2 9070 derailleurs front and rear (Image credit: James Huang)
Image 3 of 24

The Shimano Dura-Ace 9000 cranks roll on a CeramicSpeed bottom bracket

The Shimano Dura-Ace 9000 cranks roll on a CeramicSpeed bottom bracket (Image credit: James Huang)
Image 4 of 24

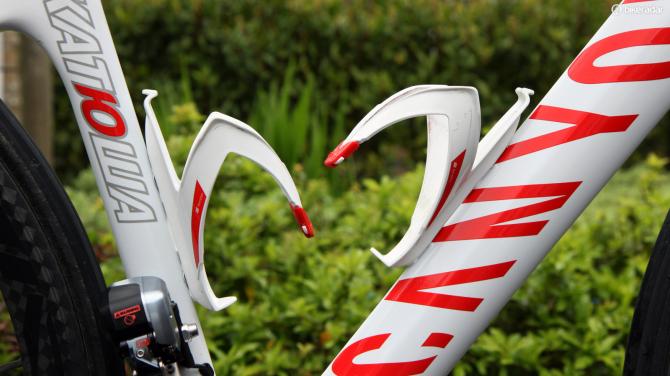

A pair of Elite fiberglass cages take care of bottle duties

A pair of Elite fiberglass cages take care of bottle duties (Image credit: James Huang)
Image 5 of 24

These tires are marked as Mavics but are more likely made by Hutchinson. The wheels are proper Mavic Cosmic Carbone Ultimates, though

These tires are marked as Mavics but are more likely made by Hutchinson. The wheels are proper Mavic Cosmic Carbone Ultimates, though (Image credit: James Huang)
Image 6 of 24

A standard SRM PowerControl 7 computer for Joaquim Rodriguez (Katusha)

A standard SRM PowerControl 7 computer for Joaquim Rodriguez (Katusha) (Image credit: James Huang)
Image 7 of 24

'Purito' uses a 100mm-long Ritchey WCS 4-Axis stem

'Purito' uses a 100mm-long Ritchey WCS 4-Axis stem (Image credit: James Huang)
Image 8 of 24

A bit of tape is wrapped around the valve stem to keep it from rattling

A bit of tape is wrapped around the valve stem to keep it from rattling (Image credit: James Huang)
Image 9 of 24

The hourglass-profile head tube surrounds a 1 1/8-to-1 1/4in steerer

The hourglass-profile head tube surrounds a 1 1/8-to-1 1/4in steerer (Image credit: James Huang)
Image 10 of 24

Just a couple of strips of electrical tape are used to secure the Shimano Dura-Ace Di2 wire to the brake housing

Just a couple of strips of electrical tape are used to secure the Shimano Dura-Ace Di2 wire to the brake housing (Image credit: James Huang)
Image 11 of 24

The big chain stays provide plenty of room for sponsor placement

The big chain stays provide plenty of room for sponsor placement (Image credit: James Huang)
Image 12 of 24

(Image credit: James Huang)
Image 13 of 24

Joaquim Rodriguez (Katusha) usually trains with an SRM power meter (as evidenced by the magnet glued to the chain stay) but will apparently go without on race dy

Joaquim Rodriguez (Katusha) usually trains with an SRM power meter (as evidenced by the magnet glued to the chain stay) but will apparently go without on race dy (Image credit: James Huang)
Image 14 of 24

And don't you forget it!

And don't you forget it! (Image credit: James Huang)
Image 15 of 24

Black, white, and red are heavily overused colors in the bicycle industry these days but somehow this combination manages to look fresh. Sponsor names are tastefully applied to the stays while up front, the custom paint scheme carries over to the inside of the fork legs as well

Black, white, and red are heavily overused colors in the bicycle industry these days but somehow this combination manages to look fresh. Sponsor names are tastefully applied to the stays while up front, the custom paint scheme carries over to the inside of the fork legs as well (Image credit: James Huang)
Image 16 of 24

Selle Italia gets into the game as well with custom saddle graphics. Note the years printed on the nose, too

Selle Italia gets into the game as well with custom saddle graphics. Note the years printed on the nose, too (Image credit: James Huang)
Image 17 of 24

Joaquim Rodriguez's (Katusha) Selle Italia SLR saddle isn't just custom in terms of aesthetics, either. The standard SLR is offered with cutout and non-cutout shapes but not with a full-length channel like this

Joaquim Rodriguez's (Katusha) Selle Italia SLR saddle isn't just custom in terms of aesthetics, either. The standard SLR is offered with cutout and non-cutout shapes but not with a full-length channel like this (Image credit: James Huang)
Image 18 of 24

Classic-bend bars are wrapped with grippy Ritchey tape

Classic-bend bars are wrapped with grippy Ritchey tape (Image credit: James Huang)
Image 19 of 24

Joaquim Rodriguez (Katusha) is more of a climber than a sprinter so the supplemental Shimano Dura-Ace Di2 buttons that are normally used on the drops are instead mounted up top

Joaquim Rodriguez (Katusha) is more of a climber than a sprinter so the supplemental Shimano Dura-Ace Di2 buttons that are normally used on the drops are instead mounted up top (Image credit: James Huang)
Image 20 of 24

An all-aluminum cockpit for 'Purito'

An all-aluminum cockpit for 'Purito' (Image credit: James Huang)
Image 21 of 24

Canyon builds the Aeroad CF aero road frame with a uniquely shaped bottom bracket

Canyon builds the Aeroad CF aero road frame with a uniquely shaped bottom bracket (Image credit: James Huang)
Image 22 of 24

The standard Canyon Aeroad CF seatpost clamp is replaced with this team-only edition that features an integrated number plate holder

The standard Canyon Aeroad CF seatpost clamp is replaced with this team-only edition that features an integrated number plate holder (Image credit: James Huang)
Image 23 of 24

Teams often mark their wheels so that they're easier to retrieve in case a rider has to use one from neutral support during a race

Teams often mark their wheels so that they're easier to retrieve in case a rider has to use one from neutral support during a race (Image credit: James Huang)
Image 24 of 24

While the stays are quite tall, they're quite narrow when viewed head-on

While the stays are quite tall, they're quite narrow when viewed head-on (Image credit: James Huang)

This article first appeared on BikeRadar.

Only a small handful of riders can rightfully lay claim to saying they're "number one" and Katusha captain Joaquim Rodriguez has more right than most. The Spanish climbing specialist has stood atop the UCI WorldTour rankings in 2010, 2012, and 2013 and given the custom paint job provided to him by Canyon, he wants everyone to know.

Canyon team liaison Andreas Walzer says that 'Purito' picked out the paint scheme himself, which follows the general graphical pattern of stock Aeroad CF frames but with a gloss white base coat, red logos, and giant red 'NO. 1 IN THE WORLD' lettering across the top tube – in two languages, no less. Similar graphics are splashed across the inside of the fork blades, too.

Selle Italia gets into the custom game as well with not only special graphics on the SLR Monolink saddle but also a custom shape, too. While regular SLR Monolink saddles are offered in cutout and non-cutout forms, Rodriguez gets a non-cutout version with a deep channel running the from tip to tail to relieve pressure. To go along with this, Canyon provides a special Monolink-compatible seatpost that uses a standard VCLS Aero carbon shaft but bonded to a custom machined aluminum head.

Otherwise, Rodriguez is on a standard Aeroad CF frame in Canyon extra-small size. Aero tube shapes are used in several areas of the chassis – most notably in the head tube, down tube, and fork blades – and according to Canyon, the general design goal was to minimize the bike's frontal area. As compared to the company's more structurally efficient Ultimate CF SLX model, the Aeroad CF is certainly much narrower in profile along with a more compact rear triangle, a dramatically hourglass-profile head tube surrounding a downsized (for Canyon, that is) 1 1/8-to-1 1/4in steerer, and a more neatly integrated seatpost clamp that in this case also serves double duty as a number plate holder.

One might wonder why a climbing specialist like Rodriguez chooses the Aeroad CF when the Ultimate CF SLX chassis is several hundred grams lighter, not to mention stiffer in both the drivetrain and in torsion. However, like many of the world's best climbers, Rodriguez stands a modest 1.69m (5ft 6.5in) tall and his XS-size bike barely meets UCI minimum weight requirements with a standard Shimano Dura-Ace Di2 9070 group, Mavic Cosmic Carbone Ultimate wheels, and an alloy Ritchey cockpit installed.

In fact, we measured the bike to be slightly below the limit at 6.79kg with the computer head installed.

Given that, there's little reason not to give himself a bit of an aero edge – however slight – and with three podium finishes in his last four Grand Tours plus a strong field at this year's Giro d'Italia, 'Purito' will want any advantage he can get.

Complete bike specifications

Frame: Canyon Aeroad CF, size XS
Fork: Canyon Aeroblade SL
Headset: Acros, 1 1/8-to-1 1/4in tapered
Stem: Ritchey WCS 4-Axis, 100mm x -6°
Handlebar: Ritchey WCS Classic, 40cm (c-c)
Tape: Ritchey Logic EVA
Front brake: Shimano Dura-Ace BR-9000 w/ carbon-specific pads
Rear brake: Shimano Dura-Ace BR-9000 w/ carbon-specific pads
Brake levers: Shimano Dura-Ace Di2 STI Dual Control ST-9070
Front derailleur: Shimano Dura-Ace Di2 FD-9070
Rear derailleur: Shimano Dura-Ace Di2 RD-9070
Shift levers: Shimano Dura-Ace Di2 STI Dual Control ST-9070 w/ SW-R610 shifters mounted on bar tops
Cassette: Shimano Dura-Ace CN-9000, 11-25T
Chain: Shimano Dura-Ace CN-9000
Crankset: Shimano Dura-Ace FC-9000, 170mm, 53/39T
Bottom bracket: CeramicSpeed BB86
Pedals: Shimano Dura-Ace SPD-SL PD-90000
Wheelset: Mavic Cosmic Carbone Ultimate
Front tire: 'Mavic Yksion Grip Link' tubulars, 22mm (likely made by Hutchinson)
Rear tire: 'Mavic Yksion Grip Link' tubulars, 22mm (likely made by Hutchinson)
Saddle: Custom Selle Italia SLR Monolink
Seatpost: Custom Monolink-compatible by Canyon
Bottle cages: Elite Custom Race (2)
Other accessories: SRM PowerControl 7 computer

Critical measurements

Rider's height: 1.69m (5ft 6.5in)
Rider's weight: 58kg (129lb)
Saddle height from BB, c-t: 690mm
Saddle setback: 55mm
Seat tube length (c-t): 489mm
Seat tube length (c-c): 450mm
Tip of saddle nose to center of bars (next to stem): 520mm
Saddle-to-bar drop: 93mm
Head tube length: 109mm
Top tube length (effective): 527mm
Weight: 6.79kg (14.97lb, with computer and cages)
