What experienced cyclists notice first about a high-performance road bike

You can spot many key features of a high-performance road bike such as the Boardman SLR 9.8 just by looking at it. Ride feel is complex, though, and many factors contribute to a bike’s ride quality. In this article, we’ll run through the main attributes that make for a high-performance ride.

TL:DR Ride quality is determined by a range of factors. It starts with the bike’s geometry, but is also influenced by pedalling stiffness and the compliance at the saddle and handlebars. Frame aerodynamics are now a major consideration in performance bike design. Tyre clearance and the ability to fit wider tyres are also important, while cockpit integration provides a clean look and can enhance aerodynamic performance.

Ride quality

You’ll often hear discussion of ride quality. A well-designed bike just feels nice to ride. It will be quick to accelerate, handle well both on the straight and through bends, as well as downhill. Climbing won’t be a chore.

If a bike is designed for racing, it will feel taut and quick to respond to steering input. A quality endurance bike will feel less edgy, but shouldn't feel dull to ride. The endurance bike’s ride position may be more upright, and it may soak up road imperfections better, making for a comfortable ride over longer distances.

If that all sounds rather nebulous, there are specific design features of a high-performance bike that contribute to an enjoyable ride.

Geometry

A bike’s geometry is the sum of its frame angles and tube lengths, which together determine the bike’s ride feel. It’s a complex area, but, in general, a steeper head tube will lead to a more racy ride, while a less steep one will relax the handling and is better for endurance riders.

Bike designers strive to keep chainstays short, as this leads to a more lively ride feel, while a greater bottom bracket drop will add stability.

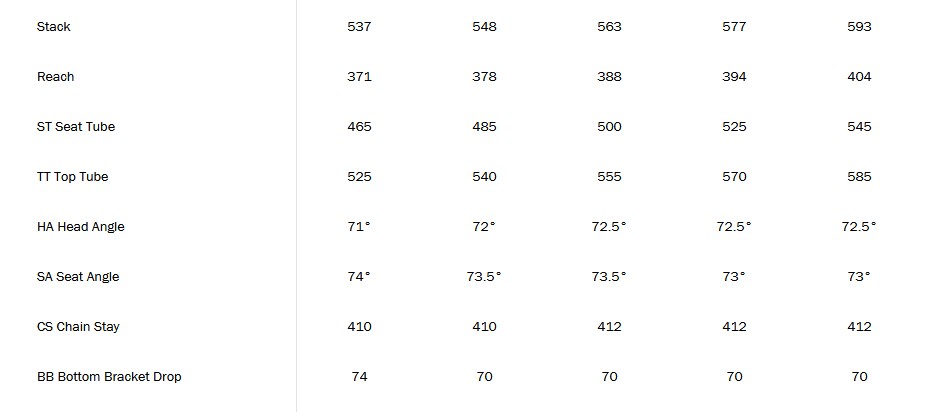

The frame’s reach and stack are important measurements, as they determine how far the handlebars are from the saddle and how high they are. A race bike will typically have a longer reach and lower stack, putting the rider in a lower position. Endurance-oriented bikes usually sit the rider more upright, with a shorter reach to the handlebars.

Many performance road bikes will include aero tube profiles to help reduce wind resistance. While some road bikes are designed to prioritise aerodynamics, an aero all-rounder like the Boardman SLR 9.8 will balance aerodynamics, low weight and ride comfort. This is likely to be better suited to the enthusiast who’s riding on mixed terrain and wants to be fast on the flat without being slowed down on climbs.

Stiffness vs compliance

A performance road bike needs to be stiff in the right places, without being uncomfortable to ride.

The bottom bracket area needs to provide an efficient pedalling platform, so this and the chainstays need to provide stiffness for good power transfer. The down tube and head tube also need to be stiff for the bike to steer with precision.

That stiffness shouldn’t result in a lack of ride comfort though, so the seat stays, seat tube, seatpost and top tube need to be engineered for greater compliance, so that they soak up road vibrations and the bike is pleasant to ride.

Tyre clearance

Modern performance road bikes have much greater tyre clearance than that offered by bikes just a few years ago. The Boardman SLR 9.8, for example, has 36mm tyre clearance. Fitting wider tyres run at lower pressures has a dramatic effect on ride comfort and grip, while it’s been shown that they usually offer lower rolling resistance and so are, in general, faster.

One of the hardest parts of bike design is providing greater tyre clearance while still keeping the chainstays relatively short, so that the ride remains lively. The bottom bracket shell on a road bike is fairly narrow, and the chainline from the crankset to the cassette needs to be correct. The front derailleur also needs to fit. It’s an area that bike designers put a lot of effort into optimising.

In contrast, the fork’s tyre clearance is relatively straightforward to engineer. The fork still needs to offer a geometry that suits the bike designer’s objectives though.

Many road bikes, including the Boardman SLR 9.8, now offer mudguard fittings, a feature that in the past was often absent. This sets the bike up for four-season riding, rather than just being comfortable to ride in dry conditions.

Wheels and tyres

Quality wheels are a big part of the performance equation. They should be stiff and relatively low in weight, with a low rim weight in particular contributing to low inertia, so that the wheels accelerate rapidly and don’t feel sluggish.

Wheel aerodynamics is another aspect of design for performance that bicycle engineers spend much time optimising. A deeper wheelset is, in general, more aerodynamic - but if too deep, it will be heavier and more prone to crosswinds, so many all-rounder performance bikes are fitted with wheels with rims that are between 40mm and 50mm deep.

A set of climbing wheels will usually be shallower and sacrifice some aerodynamic performance for a lower wheelset weight.

Tyres are also an important part of the performance equation. High-quality tyres may weigh a little less and will usually be more supple and offer lower rolling resistance. Many modern wheels and tyres are tubeless-ready and setting up tubeless will capitalise on these qualities, removing the friction between the tyre and inner tube.

Groupset integration

A final part of the performance package is integration, with many modern road bikes hiding the cables and brake hoses within the handlebars and stem, or showing only small reaches of cable in the cockpit. It looks smart and can also improve the bike’s aerodynamic performance.

It’s a design feature made easier by modern electronic groupsets, where there’s a wireless connection between the shift levers and the derailleurs, although it can be achieved with cable-operated systems too.

Hydraulic disc brakes also help, as the brake hose can be routed through complex curves without degrading braking performance. Again, it’s something that can be achieved with cable-actuated brakes, but is harder and may be more difficult to keep running smoothly.
