First ride: Giro Factor and Code shoes

By:
James Huang, technical editor
Published:
August 31, 2010, 20:10 BST,
Updated:
August 31, 2010, 21:07 BST

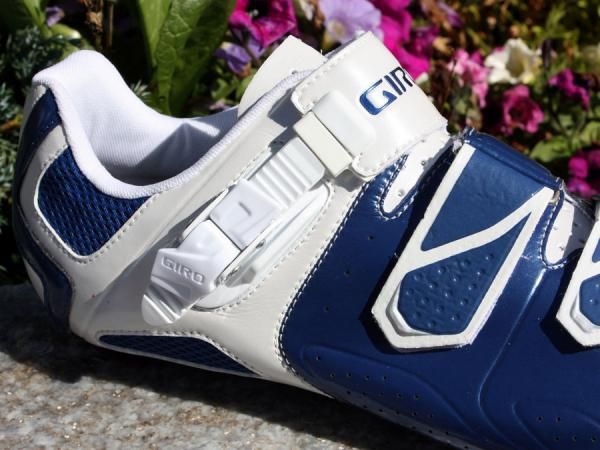

The synthetic upper on the Trans uses a more conventional multi-piece construction.

The synthetic upper on the Trans uses a more conventional multi-piece construction.

view thumbnail gallery

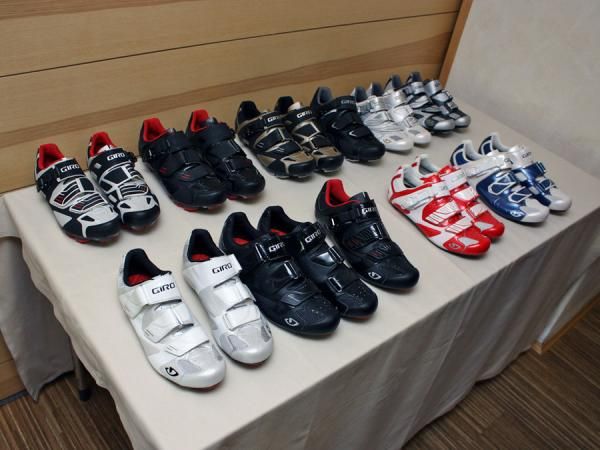

Giro Sport Design will dive headfirst into the cycling shoe market for 2011, debuting three road, two mountain, and even two women's-specific models, all of which will come with carbon fibre or carbon composites outsoles - made by sister company Easton - and will begin to appear in stores around March 2011.

We wouldn't describe any of the new shoes as groundbreaking or game changers but what Giro has done is solidly nail the middle ground with some intelligent - but far from radical - design ideas, excellent execution, an initial product range that should cover the bulk of the market, and highly refined fits and finishes that belie the line's 'debut' status.

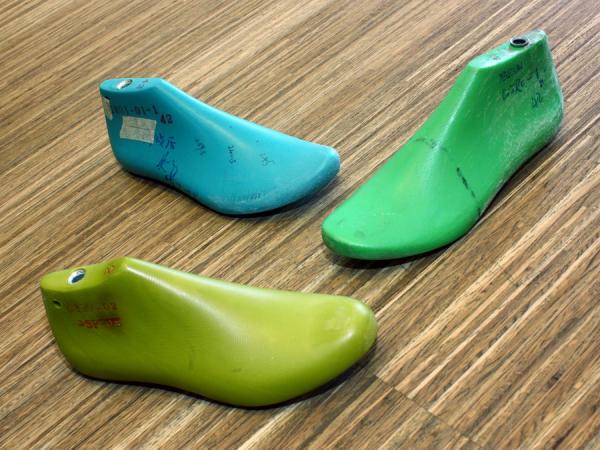

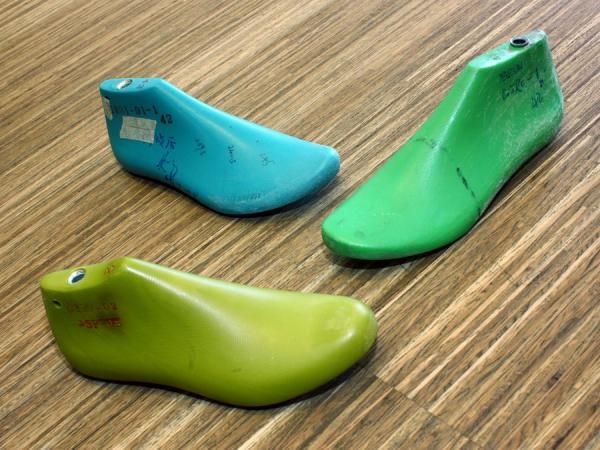

Key to the surprisingly evolved feel was the lengthy development process, which involved a whopping 16 last revisions made over a full calendar year to dial in the shape before production tooling was cut - an expensive and time-consuming step that nonetheless should pay off in the long run since generally speaking, those lasts are virtually set in stone once the production trigger is pulled.

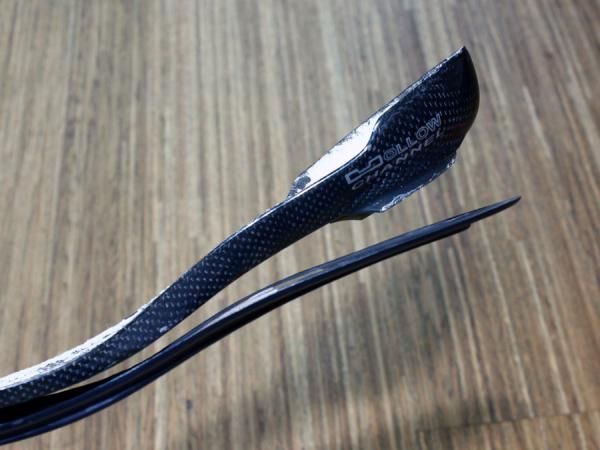

Another part of the formula is Giro's relatively conservative approach to the outsole shape, which is very thin (claimed stack height on all the road models is just 6.5mm) but pancake-flat up top from side-to-side.

Rather than building arch support into the outsole or choosing to 'cup' the foot in a bathtub-style sole, Giro says the flat plate better accommodates a wider range of rider foot shapes by allowing feet to 'spill over' the sides as needed and also doesn't force any biomechanical corrections on anyone.

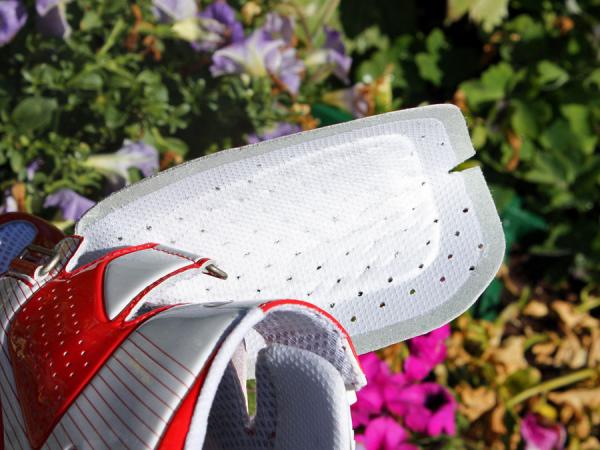

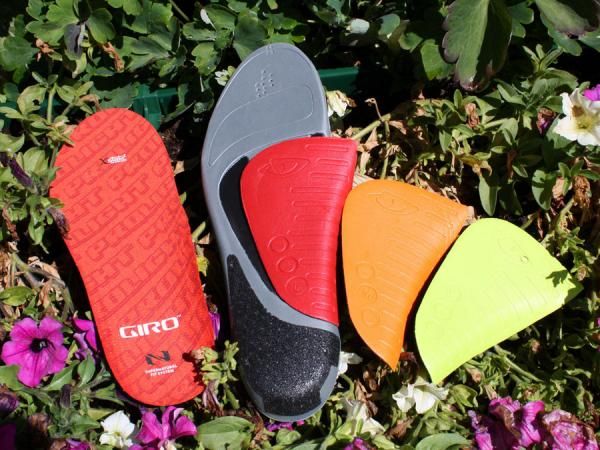

Instead, the medium-volume last has just enough room for custom orthotics or wedges and arch support is built into the stock insoles instead of the sole plate. Upper-end shoes will feature Giro's 'SuperNatural Fit Kit' modular insoles with interchangeable arch sizes (all of which are included) depending on personal rider anatomies while the rest of the range will come with medium-height non-adjustable footbeds.

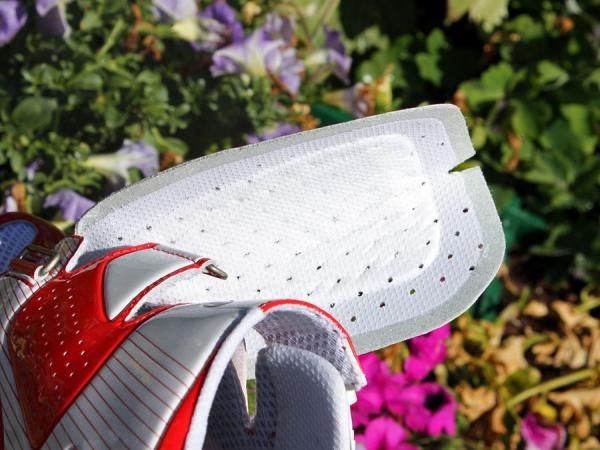

Other shared features include lightweight injection moulded internal heel counters, offset straps and densely padded tongues to alleviate pressure on the top of the foot.

A trio of road models

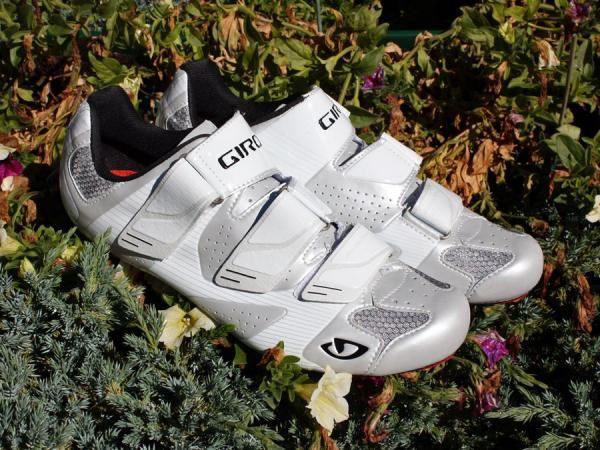

Sitting at the top end of the range is the feathery Prolight SLX, prototypes of which was raced by Radioshack rider Levi Leipheimer at this year's Tour de France.

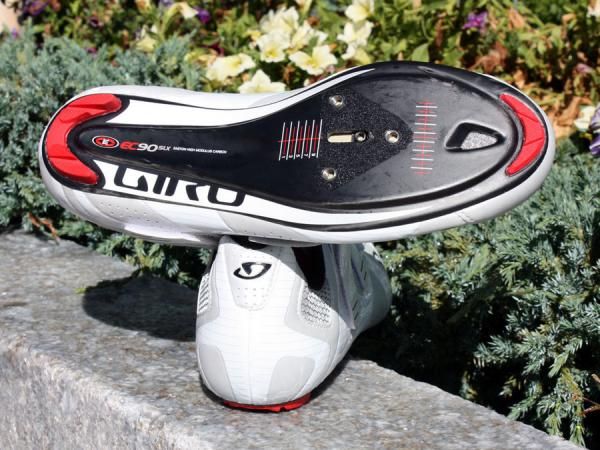

Claimed weight per size 42 shoe is just 205g, thanks to a multitude of gram-shaving measures such as Easton's lightest EC90 SLX carbon plate, nearly one-piece 1.1mm-thick Teijin AG100 microfibre synthetic uppers (also used in Nike's Mercurial range of soccer boots), titanium cleat inserts and D-rings, a single-density insole (the heavier SuperNatural version will also come in the box) and a bare-bones layout with three Velcro straps instead of the usual ratcheting buckle.

Even so, Giro claims few compromises were made to shave the grams. Outsole treads are made of less durable foam polymers and the thin upper material is slightly less supportive-feeling than others in the range but the overall shape is retained and the sole plate is supposedly virtually as rigid as Shimano's notable stout hollow-channel model but 38g lighter apiece.

Suggested retail price is US$349.99 and Giro will offer it in both black/black and a fetching white/silver - unfortunately, Leipheimer's eye-catching silver shoes won't be offered to the public.

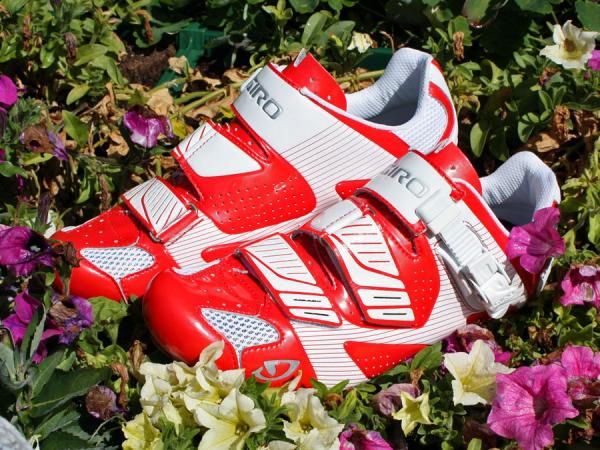

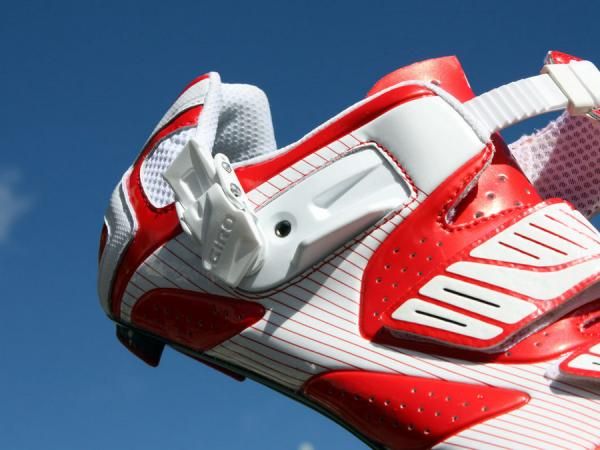

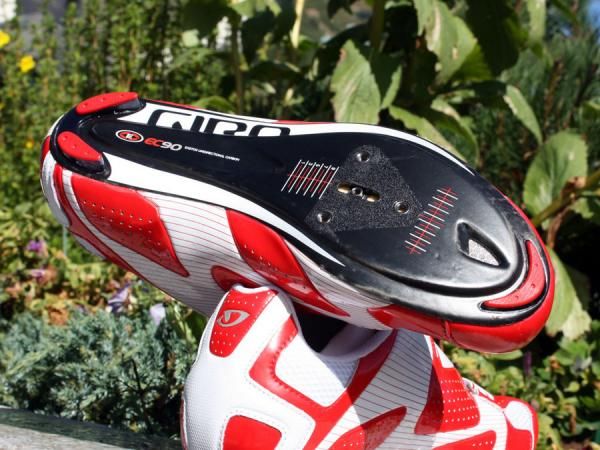

Sitting one rung below the Prolight SLX is the US$279.99 Factor, which will use a slightly heavier Easton EC90 carbon sole plate, a more conventional ratcheting buckle-plus-dual Velcro forefoot strap layout and an upper that will use a similarly near-one-piece cut but standard-thickness 1.4mm Teijin synthetic materials. The SuperNatural Fit Kit insole kit will be included, too.

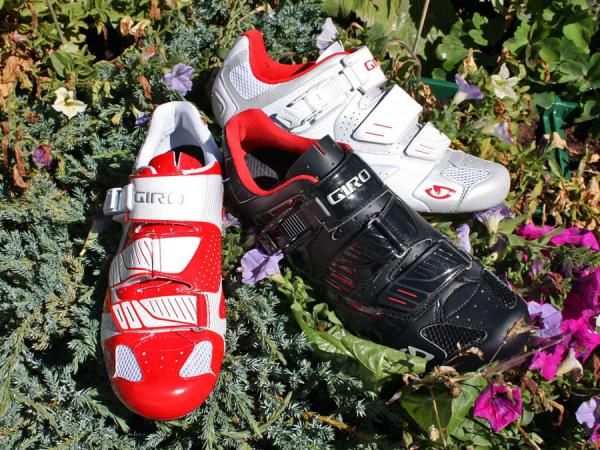

The Factor will be available in three colour schemes: red/white, all black, and all white.

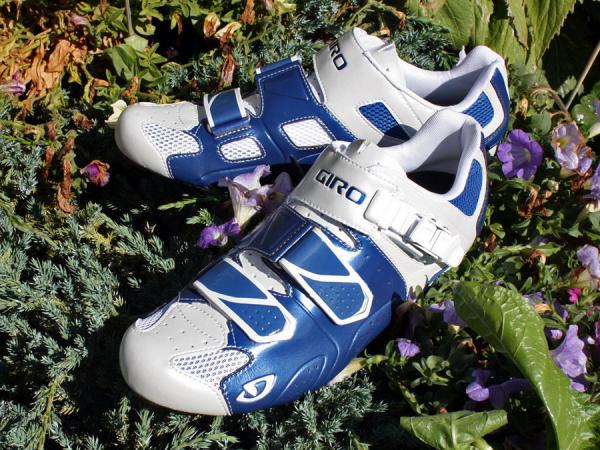

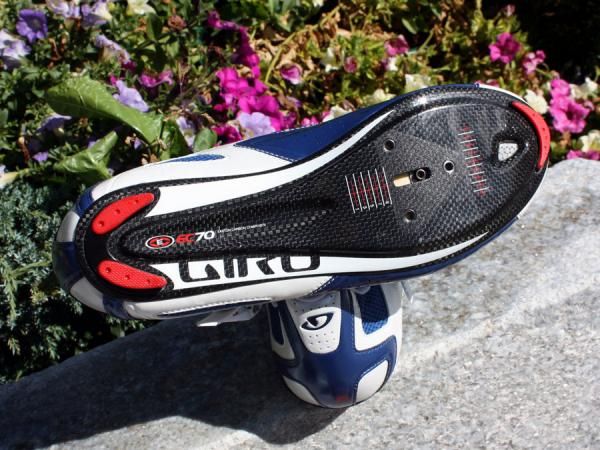

Finally, there's the workhorse Trans at US$199.99, using the same last and strap layout as the Factor but a multi-piece synthetic upper, a carbon/glass composite EC70 outsole, a single-density insole, and a heavier 275g weight. Available colors will include blue/white and all black.

All of the new road shoes will be available in sizes 39-48 with half sizes from 39.5-46.5.

Two off-road shoes for mountain and 'cross

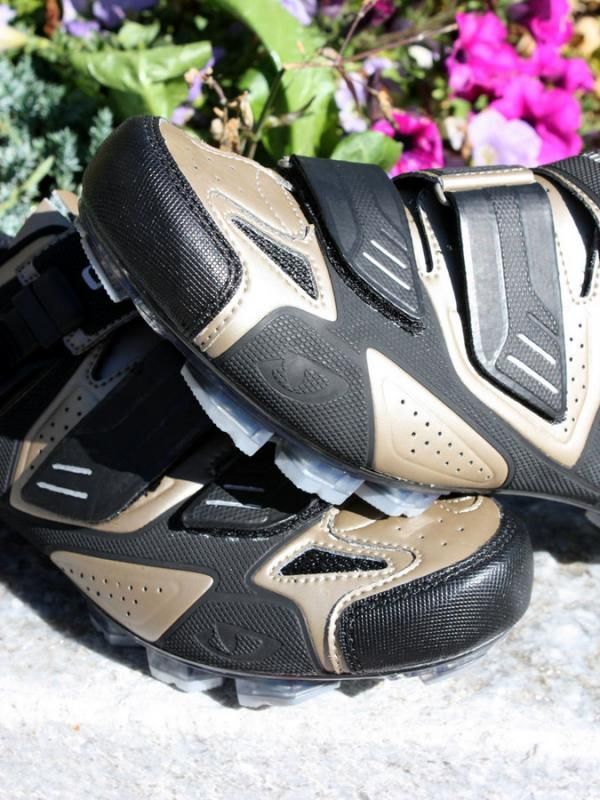

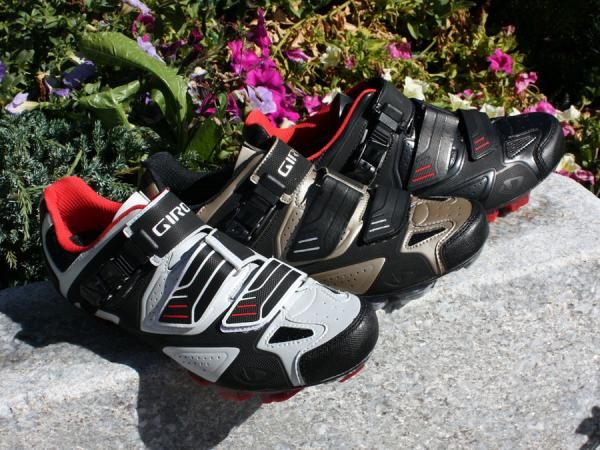

The top-end Code is essentially a beefed-up version of the road-going Factor with the same basic Teijin microfibre upper materials and construction but additional welded-on polyurethane reinforcements for both durability and protection plus a suitably tough toe bumper.

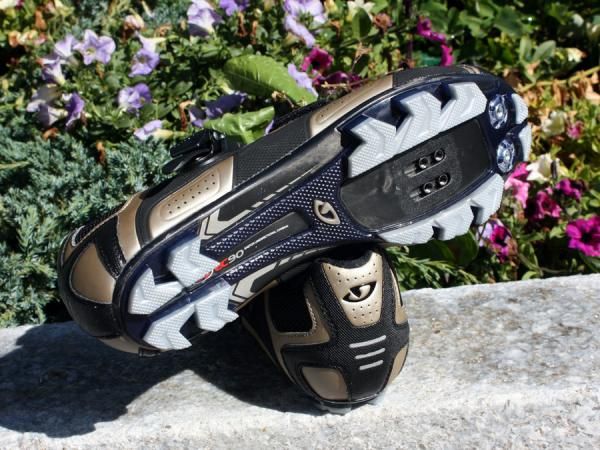

The EC90 carbon outsole is also designed to be slightly more flexible for easier walking and there's an aggressive dual-density outsole for grip.

Claimed weight is 355g per shoe (size 42) and available colours will include magnesium/black, all black, and black/white. Pricing is set at US$279.99

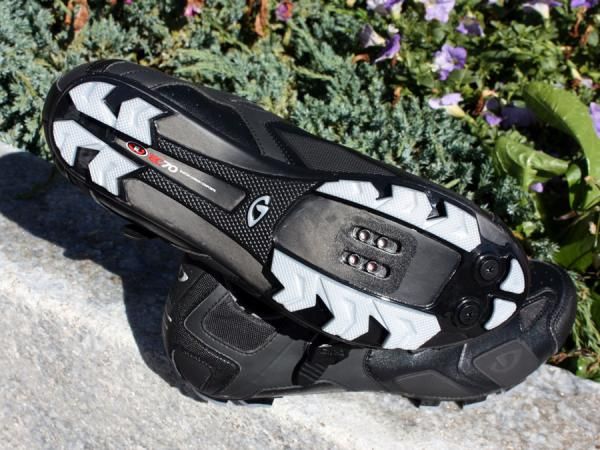

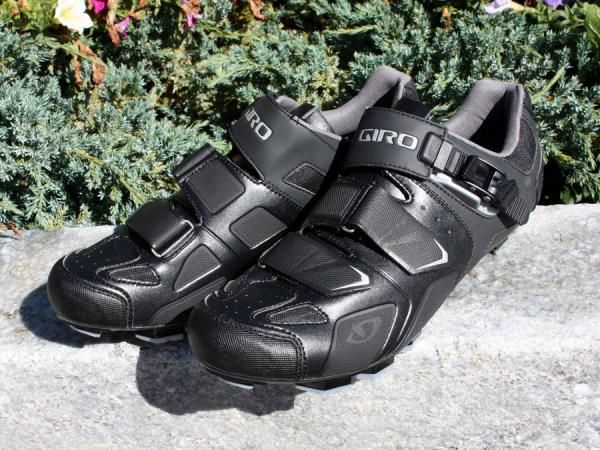

More budget-oriented riders can look to the new US$199.99 Gauge, which shares its main features with the Trans (multi-piece synthetic upper, detuned EC70 outsole, single-density insole). Interestingly, claimed weight is lighter than the more expensive Code at 345g per shoe, a difference Giro attributes to the less aggressive upper reinforcement and simpler insole construction.

Available colours will include all black and titanium/charcoal and sizing for both mountain models will run from 39-48 with half sizes from 39.5-46.5.

Women-specific models

Giro has also invested the time and effort for two women's models - one road and one mountain - both of which will use specific lasts for a more precise fit that will include a lower toe box, higher arches, and taller instep.

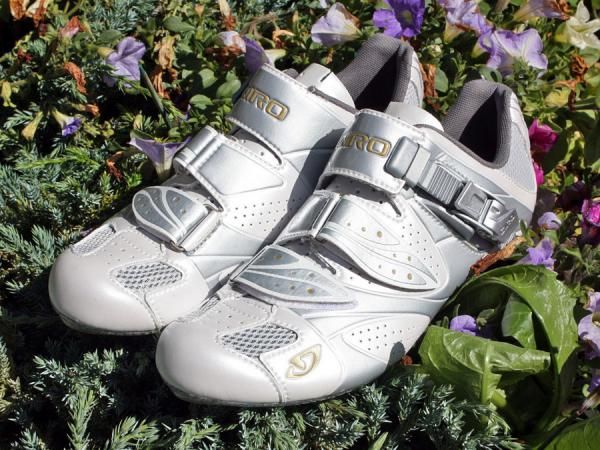

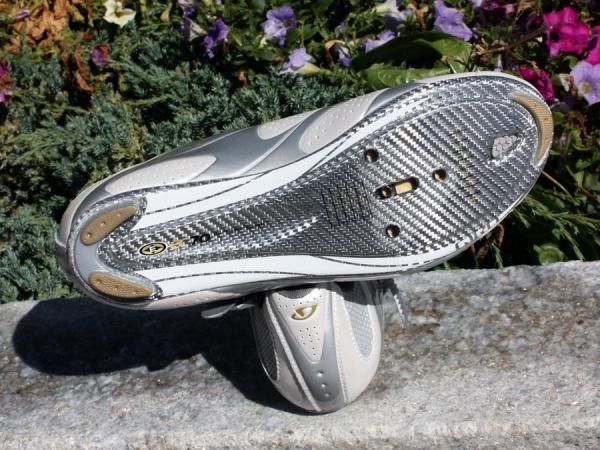

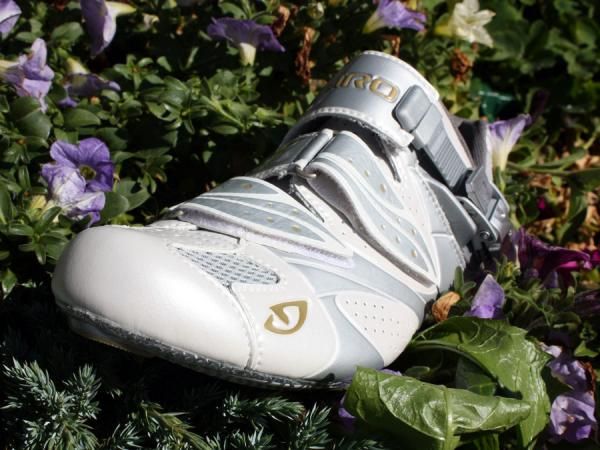

The US$199.99 Espada road shoe blends features of the men's Factor and Trans models, using a mostly one-piece microfibre upper and ratcheting buckle-plus-twin Velcro forefoot strap layout but an EC70 outsole dressed up with an aluminised top layer for a little extra visual pop. Claimed weight is 245g per shoe (size 39).

The design is decidedly more elegant, too, with softer lines and a pair of eye-catching colours: white/silver or charcoal/titanium, both with gold accents.

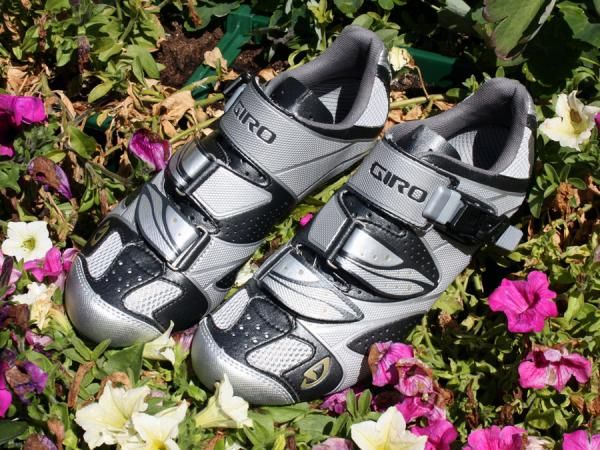

Likewise, the off-road Sica is a similar blend of the men's Code and Gauge models, again with a near-one-piece synthetic upper and two-plus-one strap layout and a detuned EC70 carbon composite outsole with dual-density lugs.

Suggested retail price is US$199.99 and Giro will offer the Sica in a single charcoal/silver colour option. Claimed weight is 305g per shoe and sizing for both women's models will run from 36-43 with half sizes from 37.5-42.5.

Survey says

We spent day one of our trip in the new Code off-road model, both in the area's terrain park and the breathtaking cross-country trails further up the valley.

Fit was impressively snug and even through the rearmost two-thirds of the shoe with the offset straps doing a good job of holding our feet secure but without creating uncomfortable pressure points even after five hours in brand-new kicks.

The roomy toe box also provides plenty of space for your piggies to wiggle about as needed. Outsole grip was good, too; the toe cap is surprisingly resistant to rock strikes and the SuperNatural Fit Kit insoles serve up a good dose of arch support despite the flat outsole plates.

We did notice a hint of heel slip, but only when hiking uphill where nearly all shoes can't quite cope, and the welded polyurethane upper reinforcements does stiffen up the feel a bit. Giro says the materials will break in somewhat, so we'll post a full report after a few more months in the saddle.

Our road test of the Factor was decidedly more demanding, involving an ascent of the brutal south side of the Passo dello Stelvio - all 1,800m (6,000ft) and fifty switchbacks of it - and a fast descent down the other side through the town of Bormio, again with brand-new shoes with zero break-in time.

We found the Factors to provide a similarly snug feel to the Code but for whatever reason, also a more secure fit around the heel. Moreover, the non-reinforced uppers were notably softer-feeling - not far off from Sidi - and despite cranking down all three straps, we reached the top with no ill effects to speak of.

In fact, we eventually stopped thinking about the shoe fit altogether by the time we hit the summit - which in all honesty is pretty much the best you could ask of any new shoe.

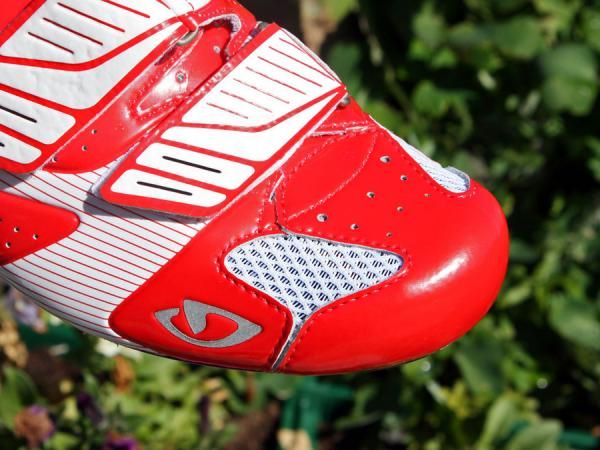

Ventilation quality, however, was obvious with the increasingly chilly air notably pouring into the open mesh inserts in the toe box. You'll definitely need shoe covers with these in even modestly cold conditions, which bodes well for full-on summertime use.

Unfortunately, we did note a sole plate curvature defect in our size 43.5 preproduction samples, which resulted in slightly warped cleats on both sides (initial sample size 42 and 44 plates were spot-on, though).

Giro product manager Simon Fisher and designer Eric Horton says this will be corrected before consumer production starts so we'll be sure to keep track of this once our proper testers arrive.

Just the beginning

The new range is likely to do very well from what we've seen so far - though late to the game, Giro has benefited from the mistakes - and successes - of others and by investing the necessary time initially has come to market with a surprisingly refined product.

Giro says this initial debut is just the start, too, with the range possibly growing by nearly three-fold by next season and more categories included, too.

We're certainly not going to make any firm conclusions at this point but we will say that riders who were planning on making a shoe purchase this spring might want to consider waiting until they can try some of these on - if nothing else, they're worth a good, hard look.
