Hitting the Tarmac with Specialized for 2008

By:
Cycling News
Published:
July 03, 2007, 1:00 BST,
Updated:
April 22, 2009, 17:18 BST

Tech feature: Specialized 2008 road lineup, July 2, 2007

Another year brings another Specialized product introduction, which now slides over a couple of European countries to Navacerrada, Spain, just outside of Madrid. As usual, Specialized's engineers and designers have been steadily beavering away over the last year (or more!) to bring yet another impressively overhauled lineup for 2008. Cyclingnews Technical Editor James Huang covers road bikes and equipment this time around, with off-road and women's equipment (along with other stuff!) to follow in the days ahead.

Tom Boonen's bike for the masses

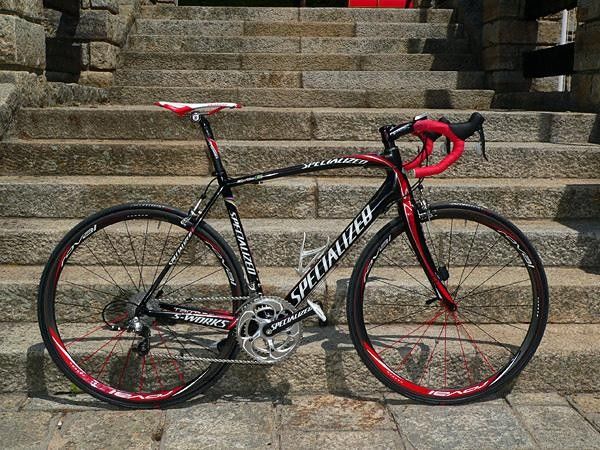

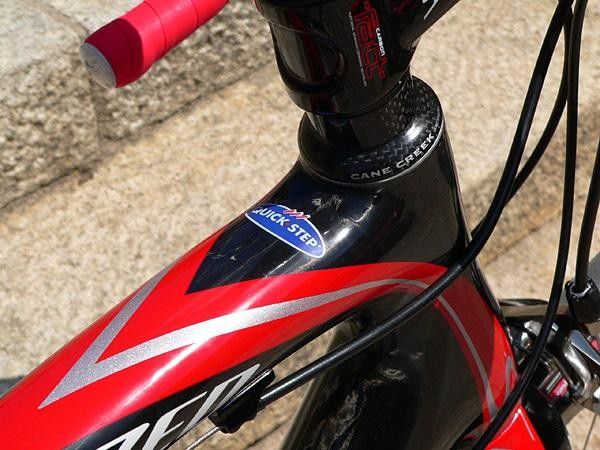

We already managed a sneak peek at the new Specialized S-Works Tarmac SL2 captained by Tom Boonen (Quickstep-Innergetic) during the Critérium du Dauphiné Libéré, and the good news is that Specialized has now officially introduced the bike as a production model for 2008. The new bike still isn't quite exactly the same as what 'Tornado Tom' rides (Boonen's machine features a fully custom front triangle with a longer head tube and a unique fiber lay-up schedule with additional plies for added rigidity), but should still offer the same basic message and changes relative to the extant S-Works Tarmac SL which will continue to be available.

According to Specialized, the Tarmac SL2 was built specifically in response to requests from Boonen and teammate Paolo Bettini for the "stiffest, fastest, most efficient, and best handling bike." In response, designers targeted bottom bracket rigidity, torsional stiffness, and vertical compliance as the main goals for the project.

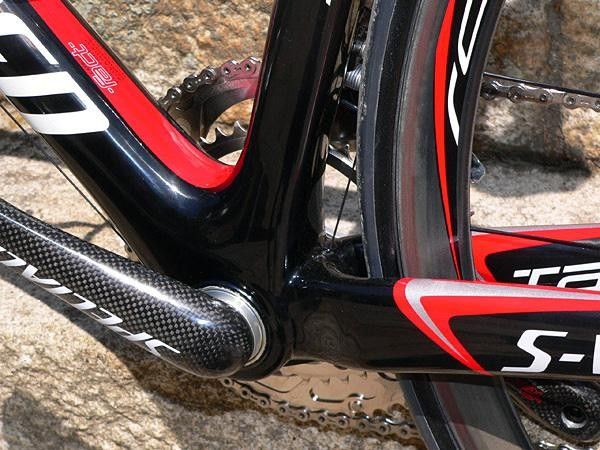

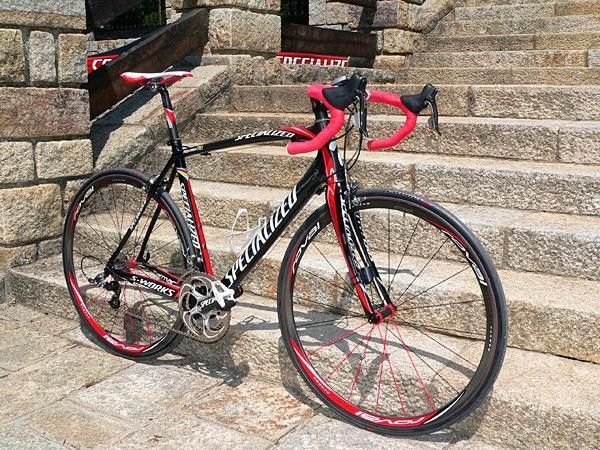

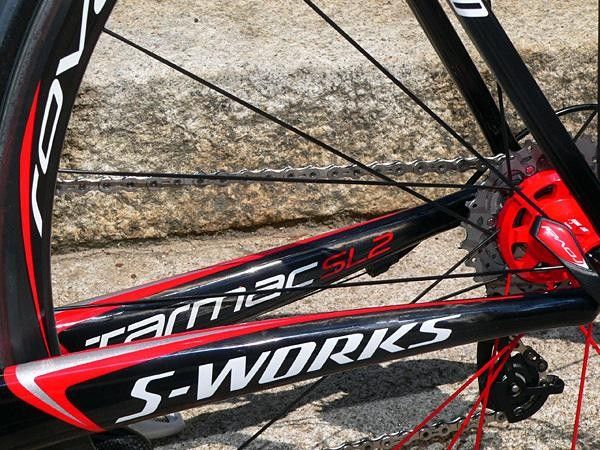

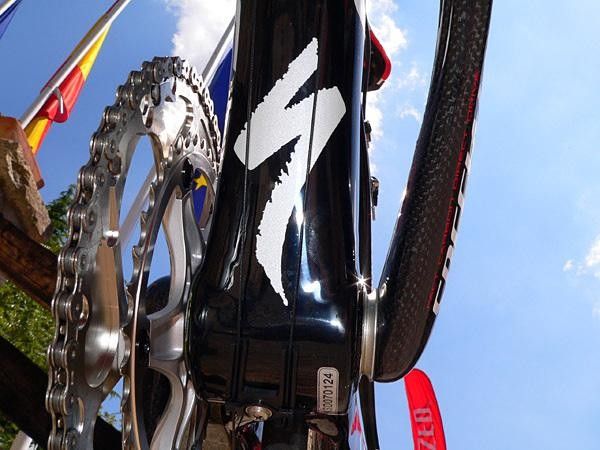

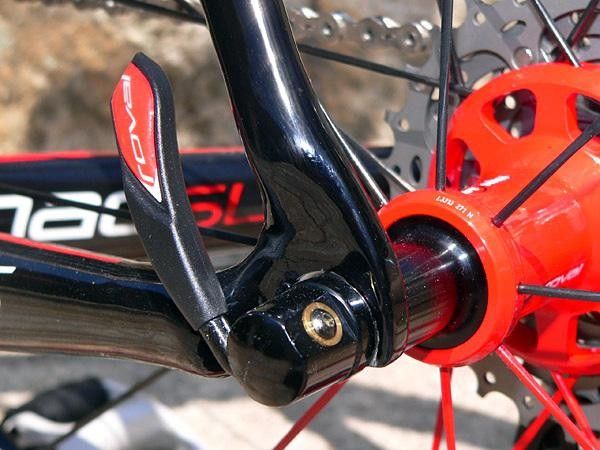

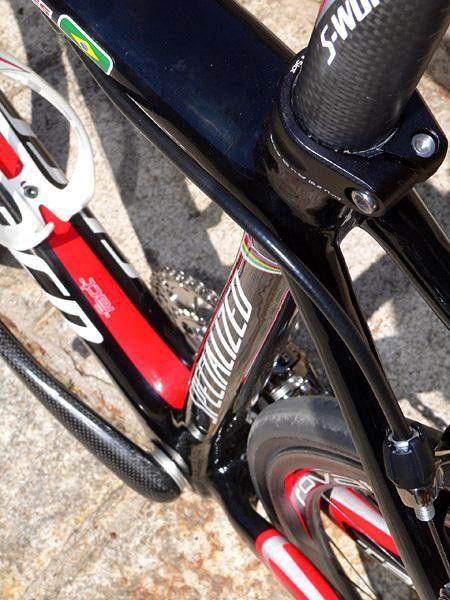

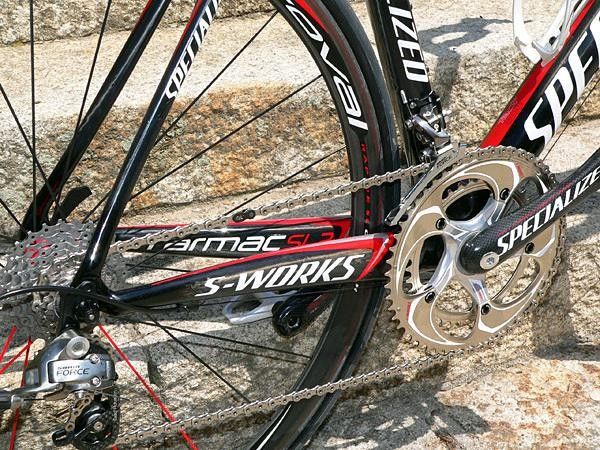

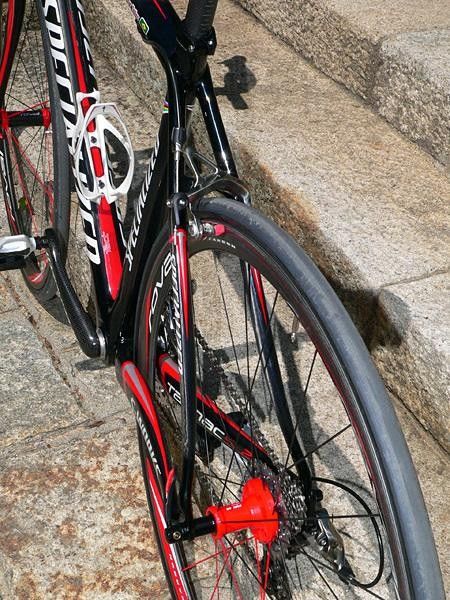

The resultant FACT IS (Integrated Structure) chassis uses more high modulus carbon fiber and is built with a new FACT 11r construction method that blends monocoque and Specialized's Az1 wrapped-joint technology. Bottom bracket and torsional rigidity are gained through an enormous down tube, exceptionally tall chain stays that take a straighter path from the bottom bracket shell to the carbon dropouts, a square-profile seat tube, and a wide and flat top tube.

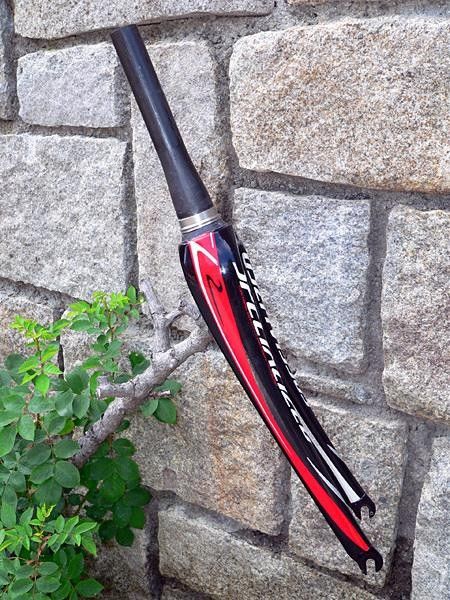

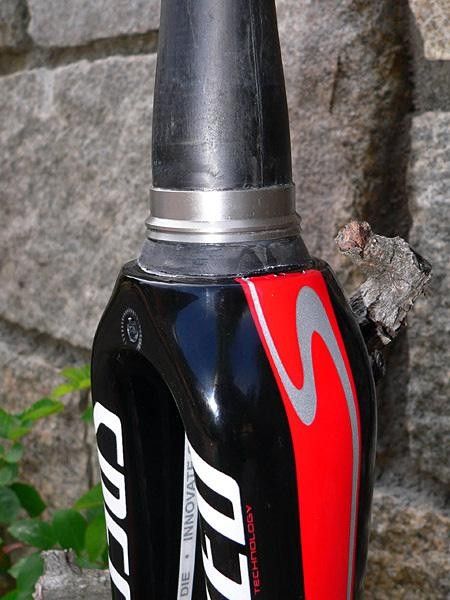

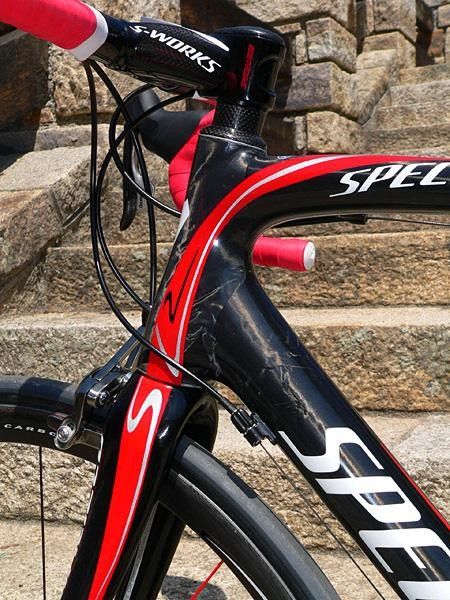

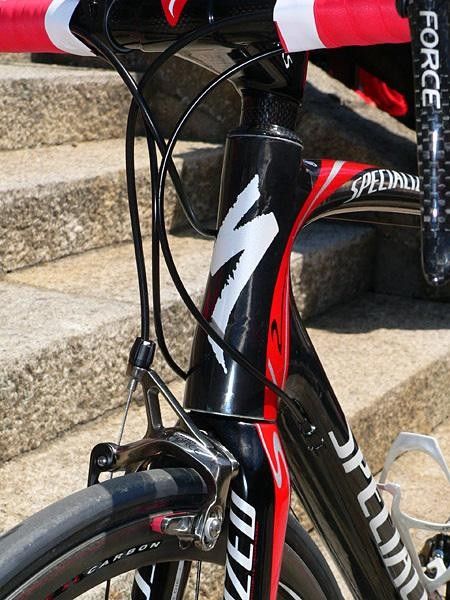

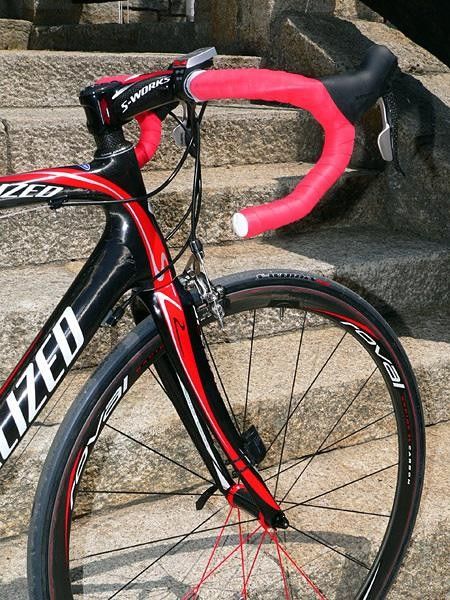

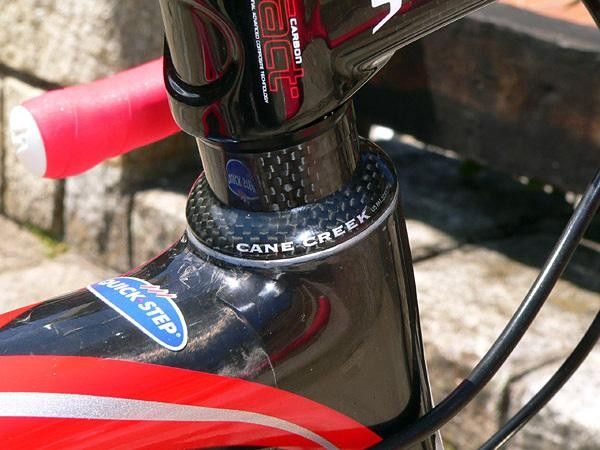

Up front, the new SL2 carbon fork now flares from 1 1/8" at the stem to 1 ½" at the crown for more precise handling, increased strength, and lighter weight. As an added benefit, the similarly flared head tube also allows for a larger junction with the down tube for even more stiffness. Frame designer Luc Callahan also shifted the lower headset bearing up inside the head tube by 12mm for improved front-end impact and fatigue strength as loads are now transferred directly into the wall of the down tube.

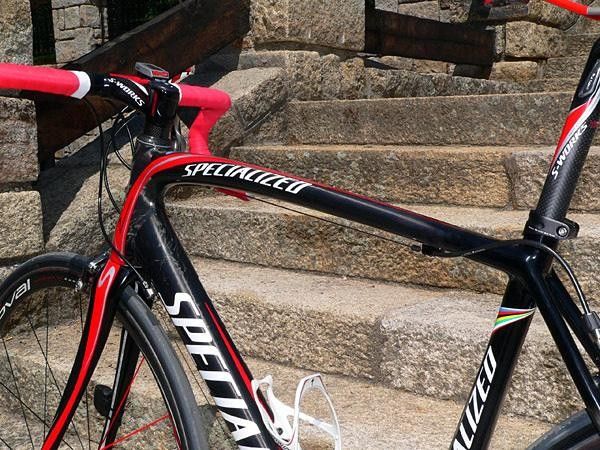

In spite of the roughly 30% increase in bottom bracket stiffness (according to Specialized), the new Tarmac SL2 somewhat miraculously is also reported to offer 10% more vertical compliance than the previous model, making it more efficient and more comfortable. To sweeten the pot, the SL2 is even about 100g lighter than the SL. Claimed weight for a 56cm bare frame is 952g; the matching fork is 350g with an uncut steerer.

Boonen's other bike for the masses

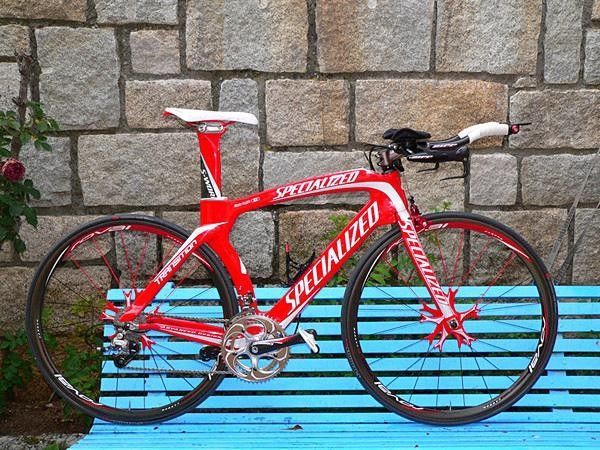

Boonen is renowned for his successes in both sprint finishes and one-day events, but apparently the Belgian superstar also feels he has a legitimate shot at scoring a win at the upcoming Tour de France prologue in London. To aid him in his quest, Specialized also unveiled an all-new (and rather striking) S-Works Transition TT/Tri platform.

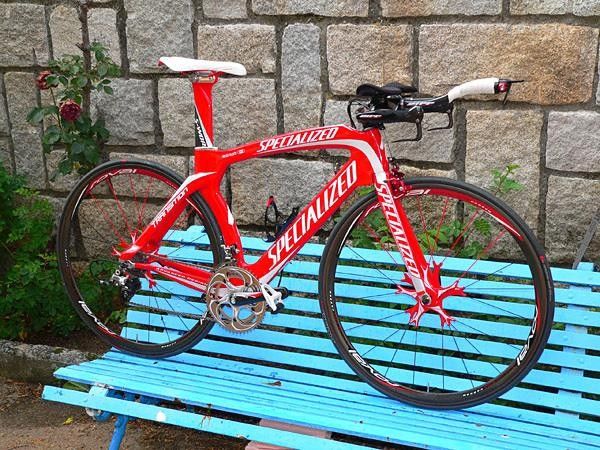

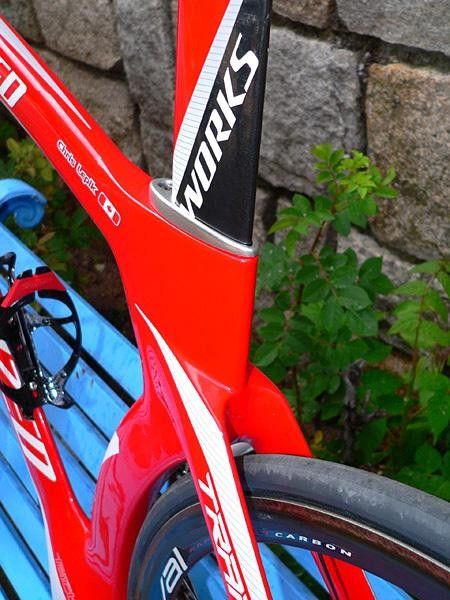

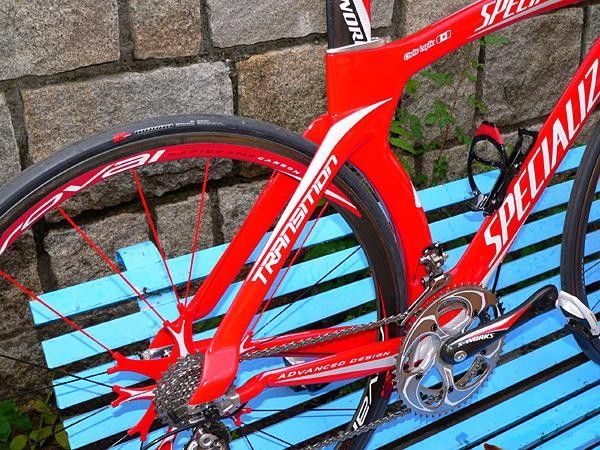

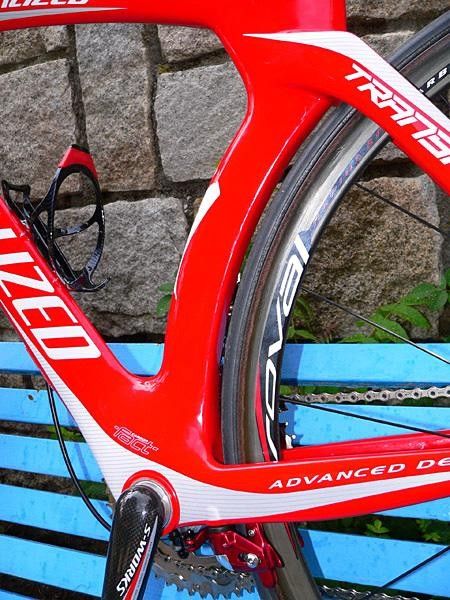

The new frame uses NACA-designed airfoil shapes for the FACT 9r N'Aero tube set, including the down tube, seat post, and seat stays. The seat- and chain stays adopt a dramatically tucked-in profile as they head towards the rear wheel to 'hide' them from the wind, and as is fast becoming convention, the rear wheel is closely profiled by the seat tube.

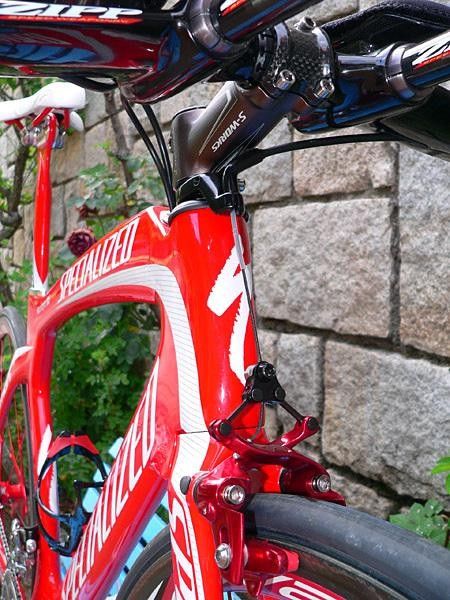

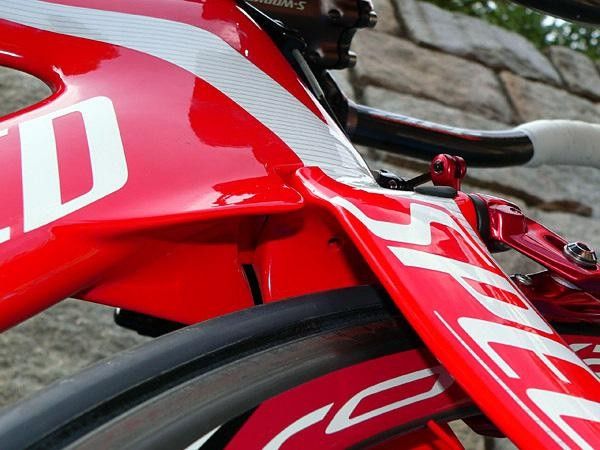

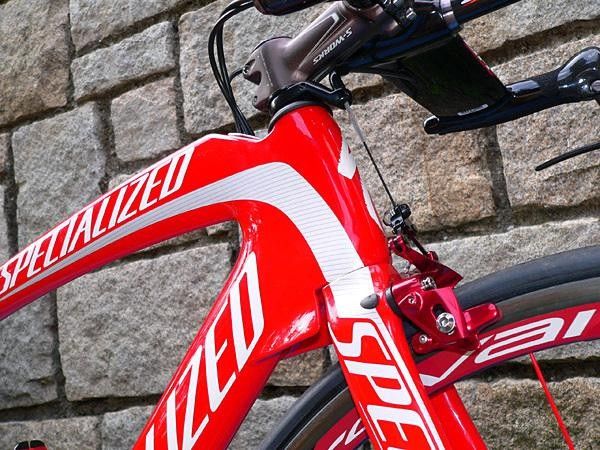

Up front, the approaching air first sees the narrow 1" alloy steerer on the N'Aero carbon fork (and matching hourglass-shaped head tube) which incorporates a unique crown shape and leg profile. Small 'speed gussets' (whose name cleverly implies that they are structural elements to satisfy UCI requirements) located on the down tube just aft of the fork are said to smooth airflow passing through the crown, while the steeply sloping top tube supposedly does the same job for air coming off the back of the bar and stem.

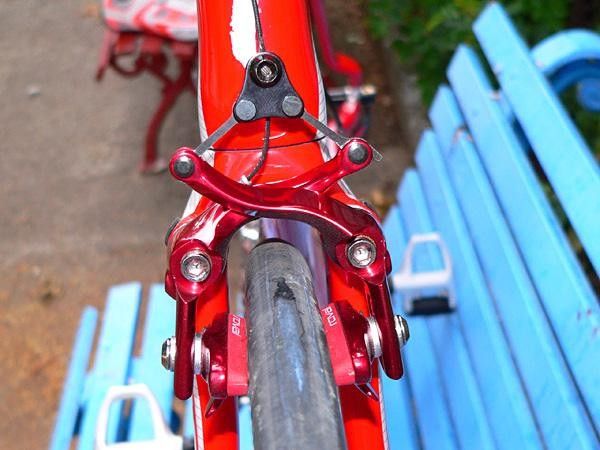

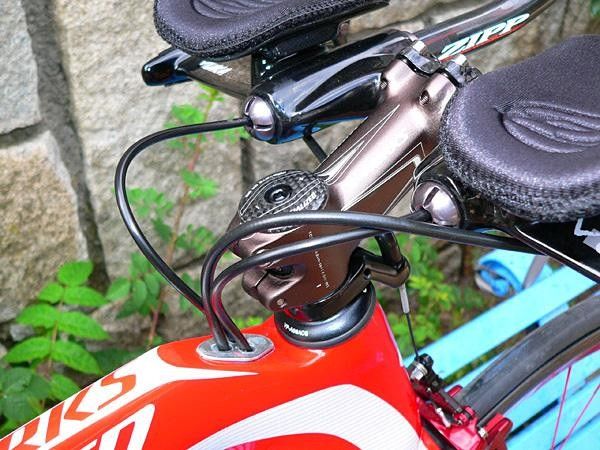

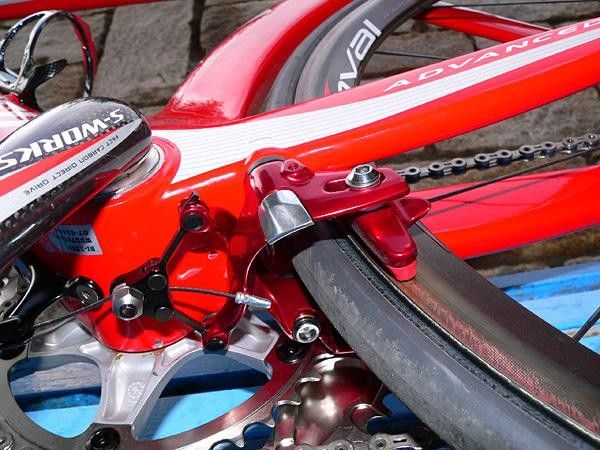

Specialized also incorporates a proprietary braking system for the new Transition which uses a more aerodynamic center-pull dual-pivot configuration (think old U-brake) and aero-sculpted calipers. Naturally, all cables are routed fully internally, but mechanics can breathe a sign of relief: a set of four pre-installed nylon tubes route each line to its respective location so no fishing (or cursing) will be required. Full housing is used throughout for ease of assembly and protection from corrosive sweat, water, and grime. What's the fourth tube for, you ask? To route your SRM power meter wire, of course! Splicing is required, but it still provides a clean and slippery appearance.

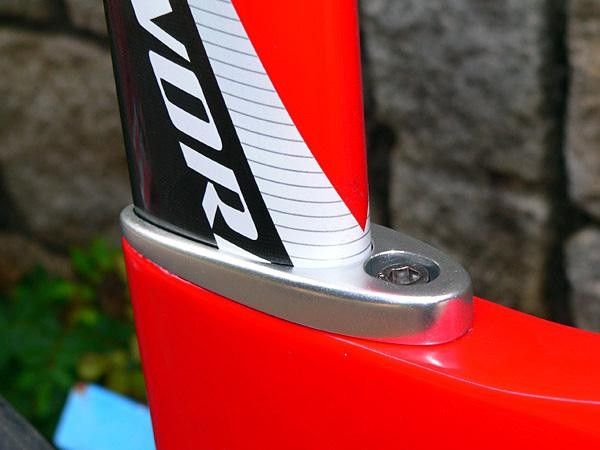

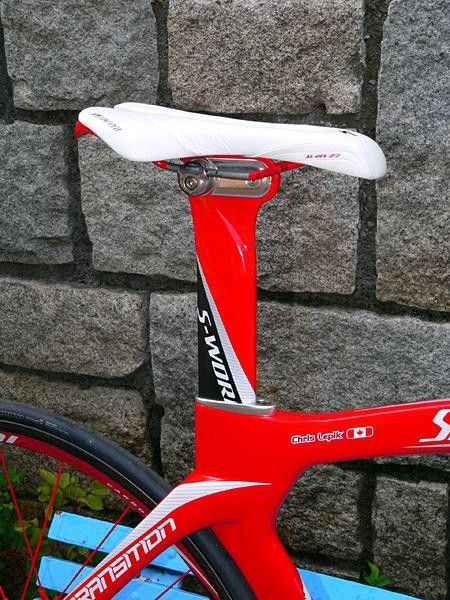

Specialized will offer the Transition with both a straight and layback post (each with a forward and rearward position) to satisfy the triathlon and ProTour ranks alike. Claimed frame weight is approximately 1500g.

Up and down, and up and down, and up and down…

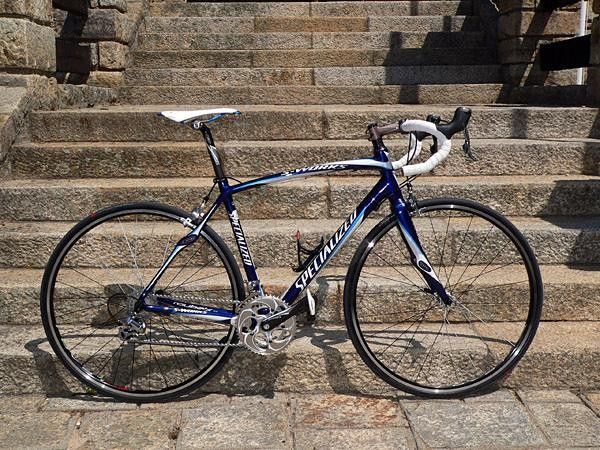

We only managed to sample a single day on the new SL2, but the difference in overall feel between it and Specialized's S-Works Roubaix SL (which is no slouch in its own right) is still immediately obvious nonetheless. The new Tarmac doesn't quite possess the Roubaix's ultra-buttery ride (it's not far off, though, at least on smaller stuff), but the stiffer chassis is noticeably more responsive in all conditions, be it climbing, descending, climbing, sprinting, or climbing (it's quite hilly here!). Turn-in is also dramatically quicker, and the entire machine exudes a level of overall directness that should undoubtedly satisfy racers.

We'll be sure to get our hands on a long-term test machine soon enough and will provide a more in-depth report on the Tarmac SL2's performance in the coming weeks and months ahead. In the meantime, on to Specialized's 2008 off-road lineup…
