Pro Bike: Ryan Trebon’s carbon Kona CX Major Jake

By:
Matt Pacocha, Bikeradar.com
Published:
November 15, 2010, 13:32 GMT,
Updated:
November 16, 2010, 14:31 GMT

Ryan Trebon and fellow Kona Cyclocross Team rider Barry Wicks have always ridden custom bikes. It’s not that Kona’s stock bikes don’t perform, but rather that both racers are just too tall for them. However, that's all changed with the new CX Major Jake.

In the past, Kona simply sized up their alloy bikes for the Twin Towers – “They made a stock 62cm frame,” said Trebon of his previous scandium Major Jake. “And they just enlarged ours by a centimeter in the top tube and a centimeter in the seat tube."

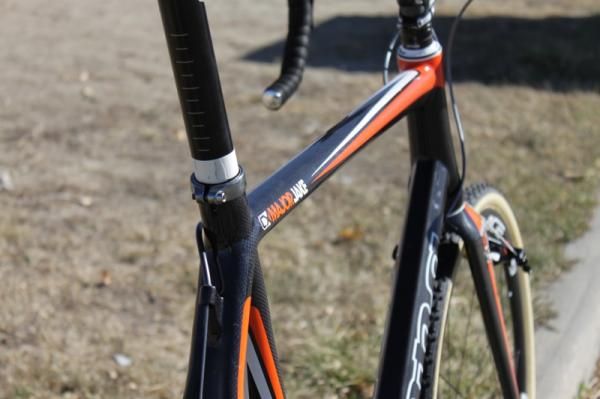

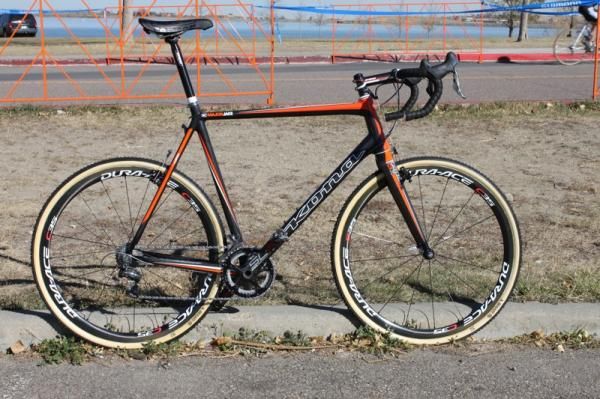

But it's a completely different story when it comes to carbon fibre. That's why Kona have added a new 63cm size for the CX Major Jake. It's based on the geometry of Trebon and Wicks' scandium bikes, with a 63-degree seat tube and 61cm top tube, but the chainstays are a centimeter shorter.

This change serves to stiffen things up and offer quicker acceleration and better handling on tight courses. “It makes the wheelbase shorter and the rear end tighter so everything feels a little snappier,” said Trebon, adding that these improvements come with no discernible loss of stability. “What stability?" he said. "I mean, we’re not descending at 50mph. When you’re going downhill and it’s muddy, you’re already all over the trail. You can’t really tell if it’s less stable – you’re sliding all over the place anyway.”

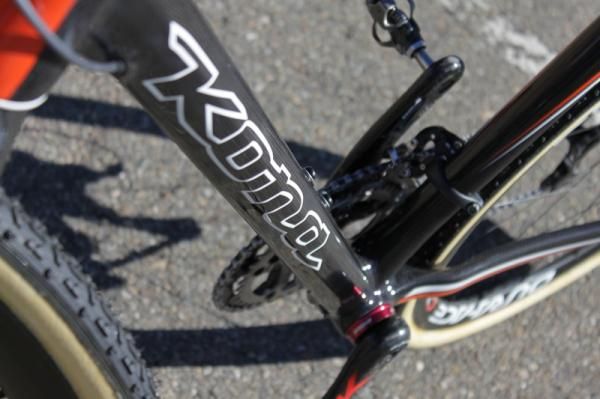

The new bike’s frame and fork stiffness is what really makes the difference, according to Trebon. “We wanted a lighter bike but we also needed it to be stiffer, in both the front end and the bottom bracket area. That was my main thing," he said. "If we’re going to do a carbon bike I don’t care if it’s 2lb lighter if it gives up any stiffness. That does me no good; being tall and pretty powerful I feel like I need something super-stiff.”

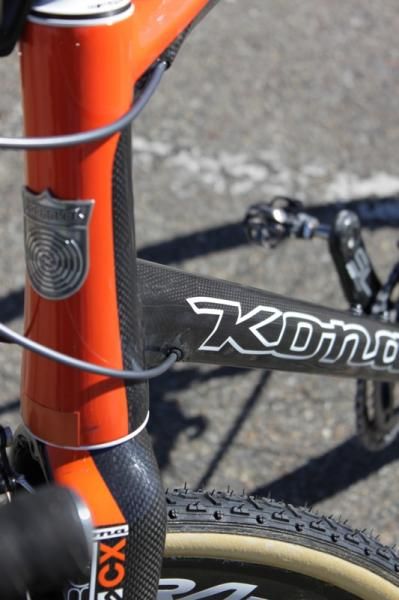

Trebon said the tapered head tube and BB30 bottom bracket were game changers for him. “The tapered head tube makes a huge difference on the bike,” he said. “It’s amazing. This is the first week I’ve actually put a ton of miles on the bike… and I’m stoked with it. It rides awesome.”

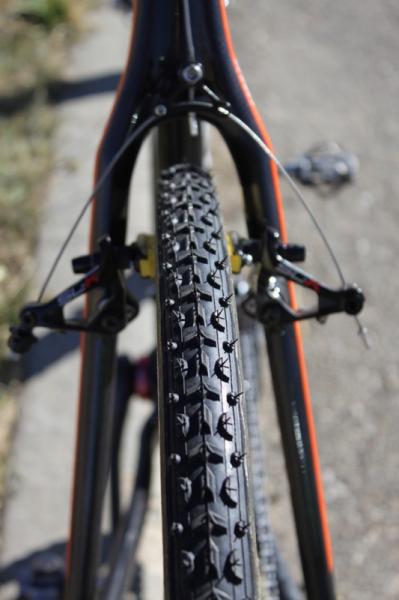

He also commented on the new fork and how, especially for ’cross, frames and forks that have been designed together seem to be the way of the future. “The fork has really stiff lowers and huge crown clearance,” he said. “It allow you to run larger tires for training… you can run a big 40c tire in there, which is nice because there’s less chance of flatting and you can ride mountain bike trails and stuff too.”

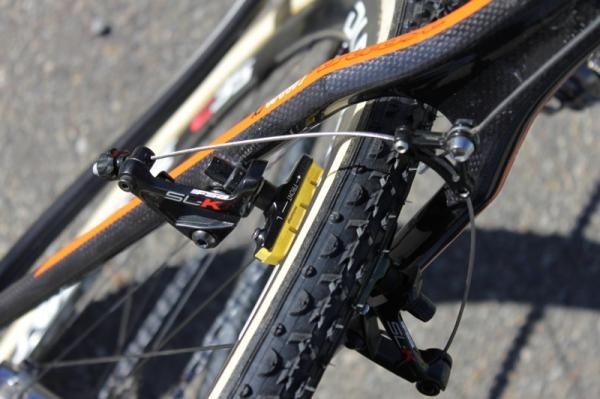

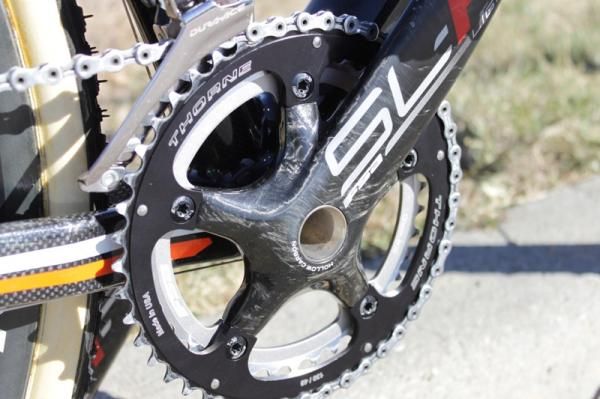

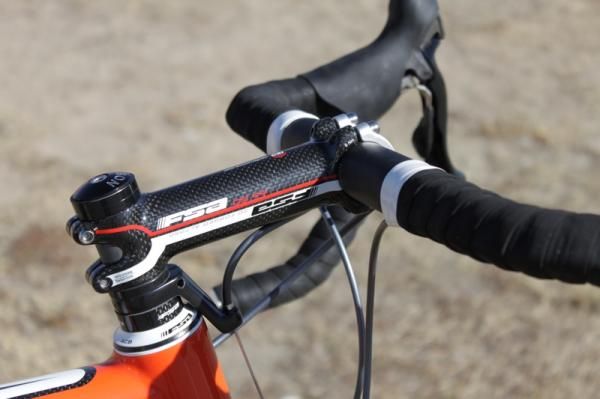

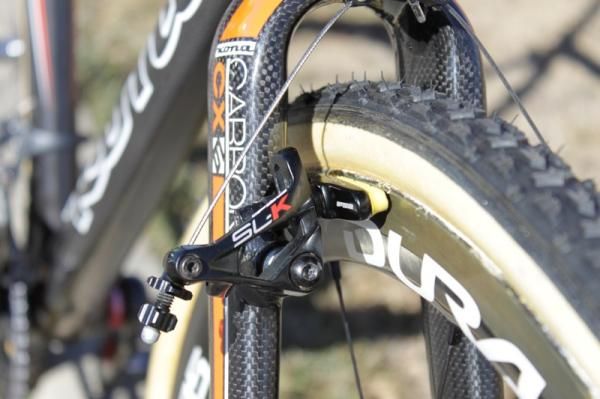

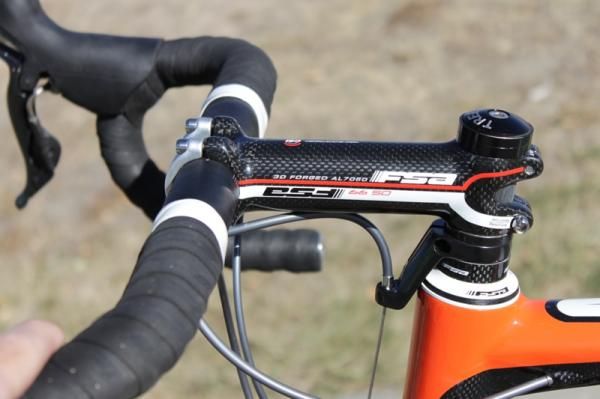

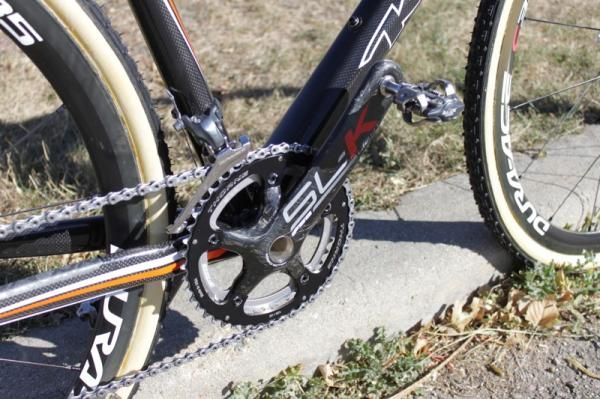

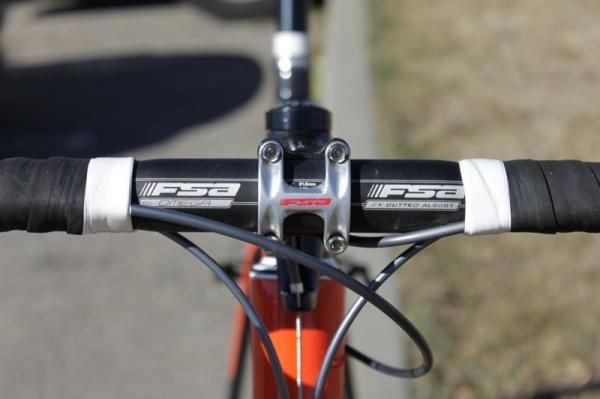

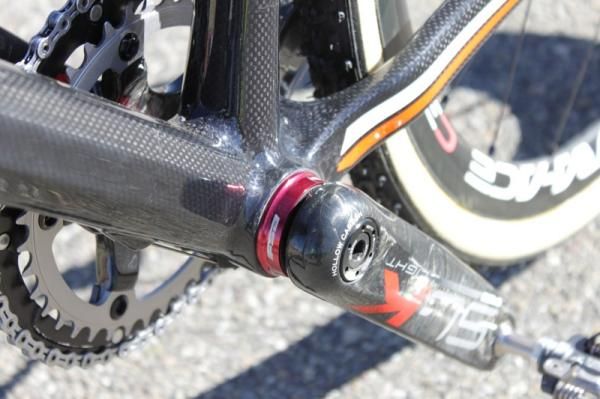

Because he favours 177.5mm crank arms, Trebon uses an FSA SL-K MegaExo crankset with BB30 adaptors, since the brand doesn’t make a BB30 crank with arms longer than 175mm. “I’d prefer to run a BB30 crank, but it’s a lot to ask of FSA – to make me a special BB30 crank,” he said. FSA also outfit Trebon’s bike with their XC190 alloy mountain bike seatpost, Omega alloy bar, carbon wrapped alloy OS-99 CSI stem and SL-K cantilever brakes.

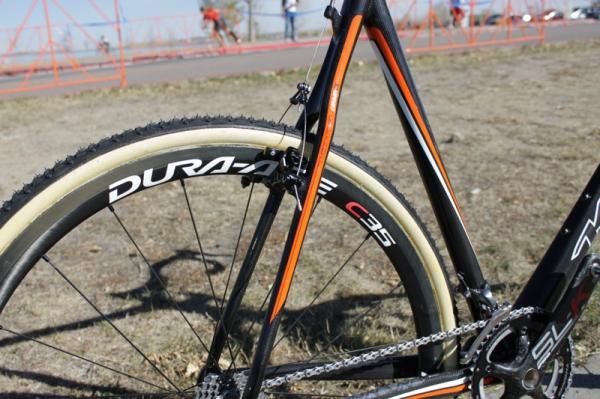

Aside from the new frameset, the other big change to the Kona team’s kit for 2010 is their switch from FSA to Shimano wheels. The team are mostly using C50 carbon tubulars, but as production ramps up on the new C35 wheels, Trebon expects to ride them more. “I really like the C35s,” he said. “I think they ride better than the C50s… Shimano will even tell you themselves. They’ll never be the lightest thing out there, but you won’t ever have any problems with them; for me that’s as important as weight.”

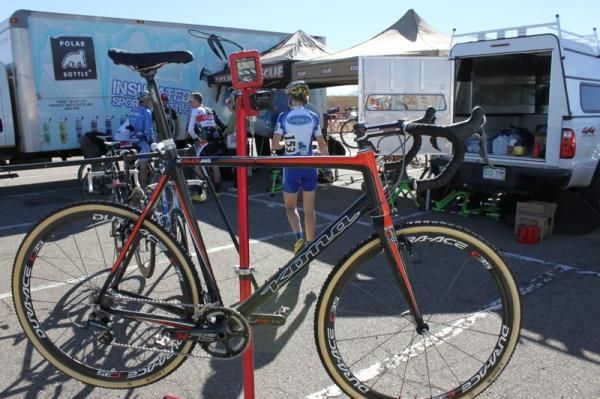

Full Specifications

Complete bike specifications:

Frame: Kona CX Major Jake carbon, 63cm
Fork: Kona CX Carbon Race
Headset: FSA zero stack

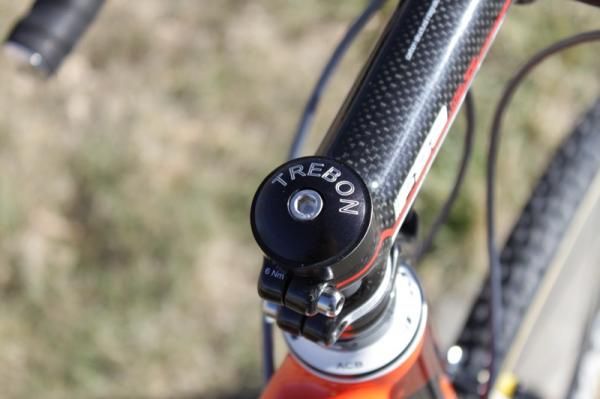

Stem: FSA OS-99 CSI, 130mm, -6°
Handlebar: FSA Omega alloy, 44cm
Tape: FSA cork

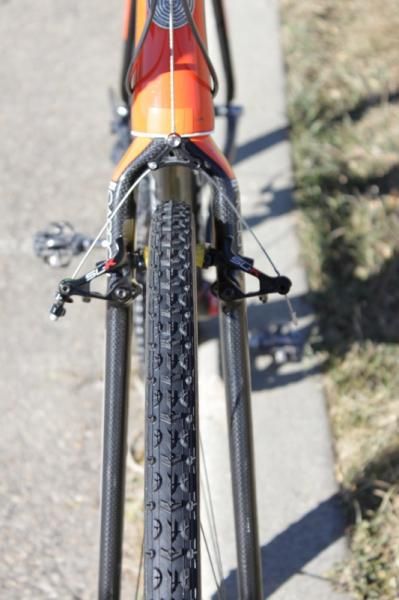

Front brake: FSA SL-K cantilever
Rear brake: FSA SL-K cantilever
Front derailleur: Shimano Dura-Ace 7900, 34.9mm clamp
Rear derailleur: Shimano Dura-Ace 7900
Shifter: Shimano Dura-Ace 7900

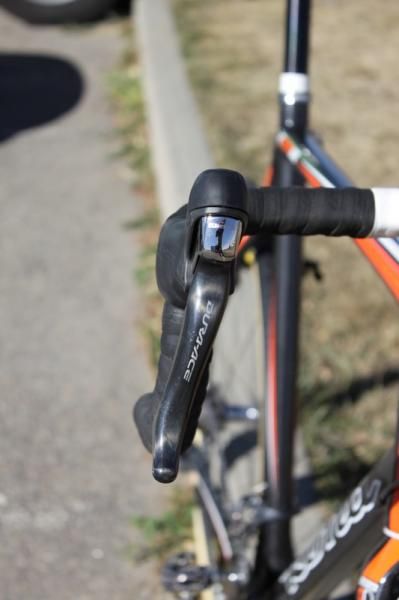

Brake levers: Shimano Dura-Ace 7900
Cassette: Shimano Dura-Ace 7900, 12-27 tooth
Chain: Shimano Dura-Ace 7900
Crankset: FSA SL-K MegaExo, 177.5mm, 46/39T
Bottom bracket: FSA BB30 with MegaExo BB30 adaptor
Pedals: Shimano XTR PD-M970
Wheelset: Shimano WH-7900-C35-TU

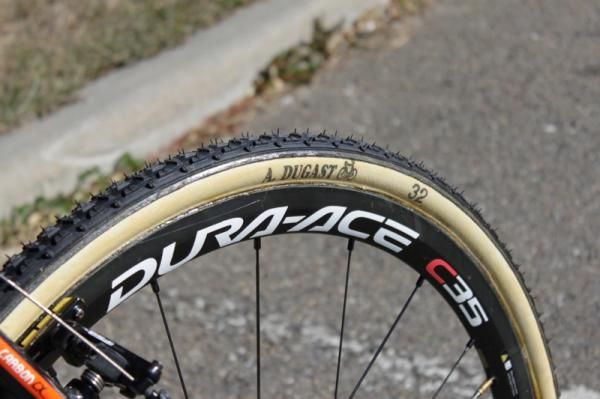

Front tire: Dugast Typhoon Cotton, 32mm
Rear tire: Dugast Typhoon Cotton, 32mm

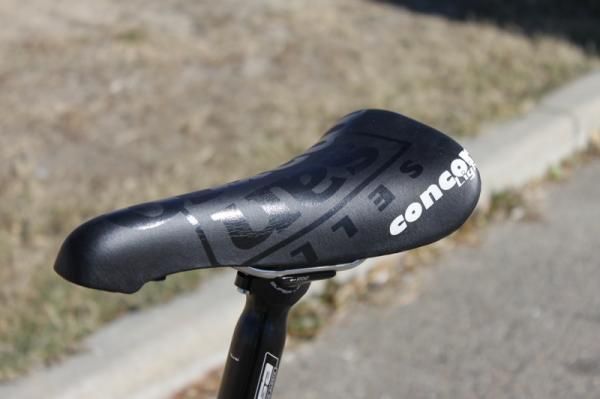

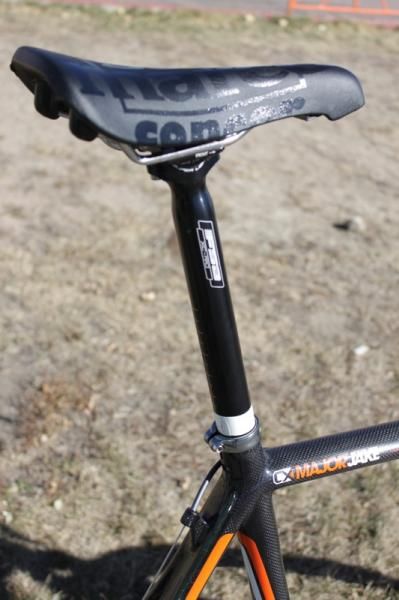

Saddle: Selle San Marco Concor Light
Seatpost: FSA XC190, 31.6mm

Critical measurements:

Rider's height: 195.5cm/6ft 5in
Rider's weight: 79kg/174lb
Saddle height from BB, c-t: 93cm
Seat tube length, c-t: 63cm
Tip of saddle to center of bar: 70.5cm
Head tube length: 20cm
Top tube length (virtual): 61.5cm

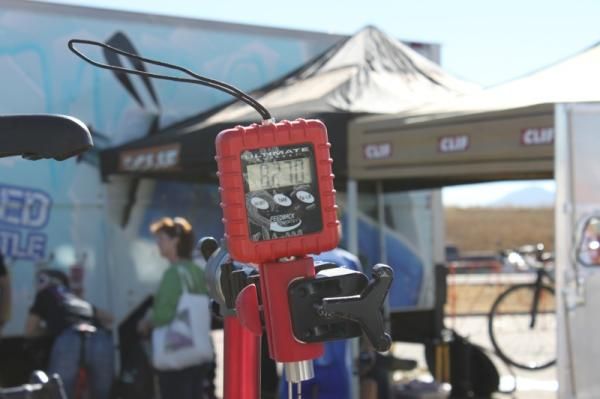

Total bicycle weight: 8.27kg/18.23lb
