Pro bike: Cadel Evans' BMC TeamMachine SLR01

By:
Cycling News
Published:
May 20, 2014, 4:00 BST,
Updated:
May 20, 2014, 4:58 BST
Race:
Giro d'Italia

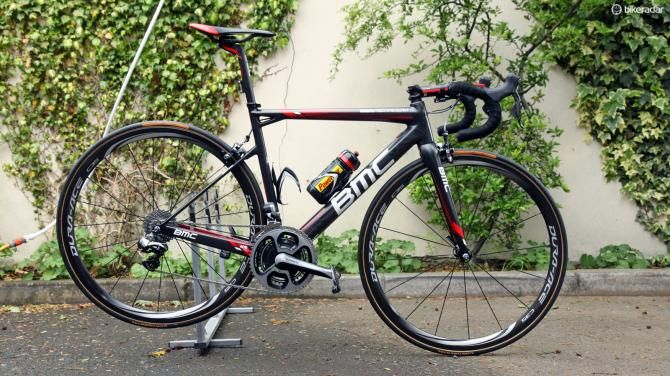

Cadel Evans (BMC) is hoping for Giro d'Italia glory aboard BMC's revamped TeamMachine SLR01

Cadel Evans (BMC) is hoping for Giro d'Italia glory aboard BMC's revamped TeamMachine SLR01

view thumbnail gallery

This article first appeared on BikeRadar.

Cadel Evans (BMC) has held the Giro d'Italia's coveted pink jersey twice before but unlike in 2002 and 2010, the plucky Australian is looking to keep that jersey on his back all the way to the finish in Trieste. Here's a look at the BMC TeamMachine SLR01 that Evans hopes will carry him there.

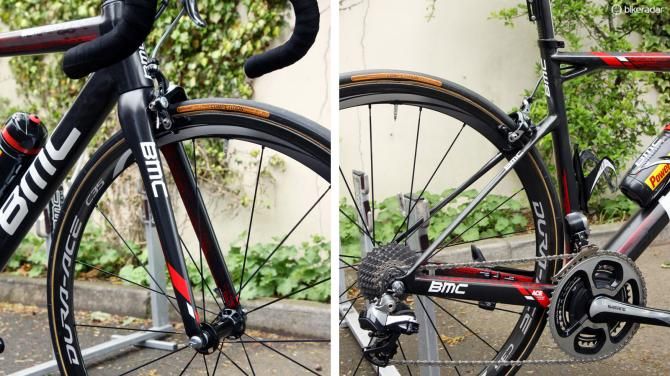

BMC recently redesigned its flagship SLR01 model, bringing down the chassis weight while at the same time supposedly also increasing its stiffness and making it more comfortable. Those traits lie at the top of the list for a GC contender like Evans, who spends little of his time punching through the wind on his own and isn't interested in a more aerodynamic - but heavier - machine like BMC's own TMR01.

We weighed a 54cm SLR01 frame at 790g back in May - a decrease of about 100g from the previous versions. As is commonplace in the pro ranks, however, Evans uses a smaller size than would typically be expected for someone that stands 1.74m (5ft 8in) tall and his 51cm chassis should be lighter still. As shown with a Shimano Dura-Ace Di2 9070 electronic group, 35mm-deep Shimano carbon tubular wheels, Continental tires, 3T cockpit components, a fi'zi:k saddle, and an SRM power meter and computer, Evans' bike weighs just 7.00kg (15.43lb).

Swapping in Shimano's shallower C24 wheelset would bring things right down to the UCI-mandated 6.8kg minimum for the big mountain stages. With either setup, Evans carries on with traditional 22mm-wide rubber, although that's partially to do with the fact that neither of his preferred wheelsets are currently made with correspondingly wide cross-sections to match.

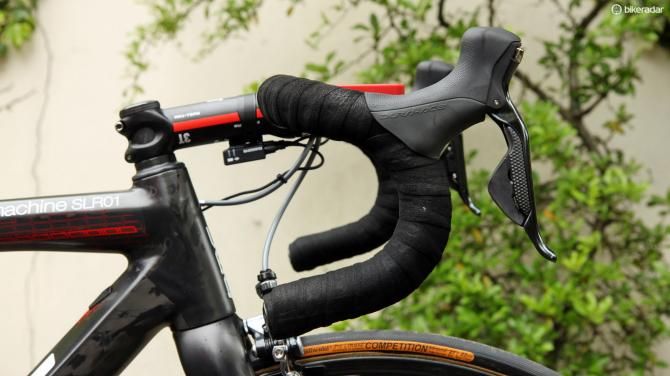

Aside from the low weight, Evans' SLR01 is also notable for its characteristically aggressive position with more than 110mm of handlebar drop and a powerful 80mm of saddle setback. The handlebar setup is a bit unusual as well with 2cm lopped off the ends and padding added beneath the tape both on the drops and up top.

According to BMC team mechanic Jurgen Landrie, Evans "just likes it that way."

With such an impressive palmarès, though, who is anyone to argue, right?

Full Specifications

Complete bike specifications
Frame: BMC TeamMachine SLR01, 51cm
Fork: BMC TeamMachine SLR01
Headset: Integrated, 1 1/8-to-1 1/4in tapered
Stem: 3T ARX Team, 120mm x -6°
Handlebar: 3T Rotundo Team, 42cm, w/ 2cm trimmed from ends
Tape: 3T

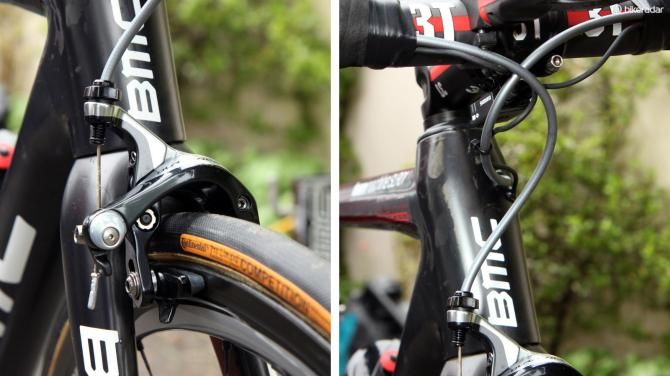

Front brake: Shimano Dura-Ace BR-9000 w/ Shimano carbon-specific pads
Rear brake: Shimano Dura-Ace BR-9000 w/ Shimano carbon-specific pads
Brake levers: Shimano Dura-Ace Di2 STI Dual Control ST-9070
Front derailleur: Shimano Dura-Ace Di2 FD-9070

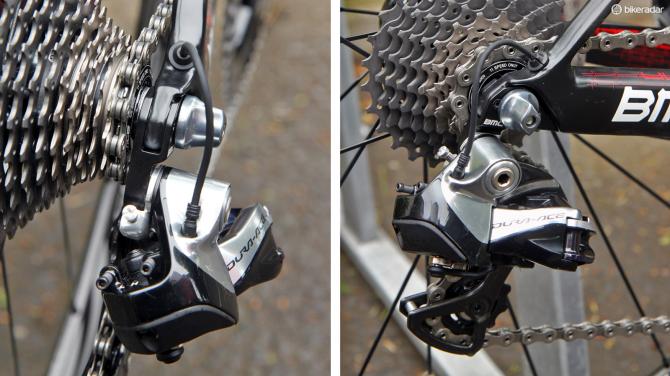

Rear derailleur: Shimano Dura-Ace Di2 RD-9070
Shift levers: Shimano Dura-Ace Di2 STI Dual Control ST-9070
Cassette: Shimano Dura-Ace CN-9000, 11-28T
Chain: Shimano Dura-Ace CN-9000

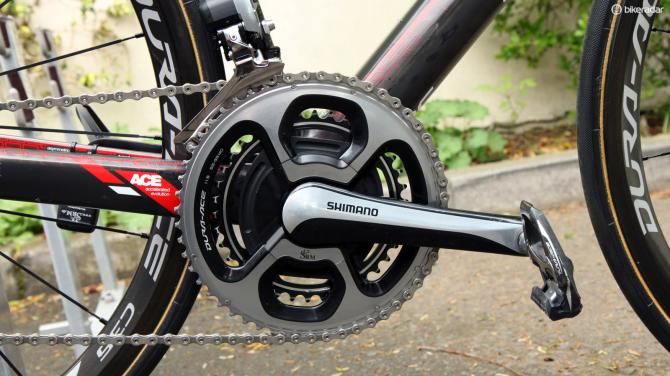

Crankset: SRM PowerMeter Shimano 11-speed, 172.5mm, 53/39T
Bottom bracket: C-Bear ceramic
Pedals: Shimano Dura-Ace SPD-SL PD-9000

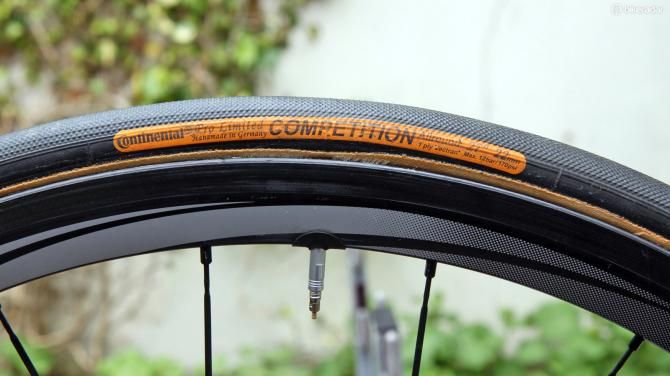

Wheelset: Shimano Dura-Ace WH9000-C35-TU
Front tire: Continental Competition Pro Limited Allround tubular, 22mm
Rear tire: Continental Competition Pro Limited Allround tubular, 22mm
Saddle: fi'zi:k Antares w/ carbon fiber shell and braided carbon fiber rails
Seatpost: BMC TeamMachine SLR01

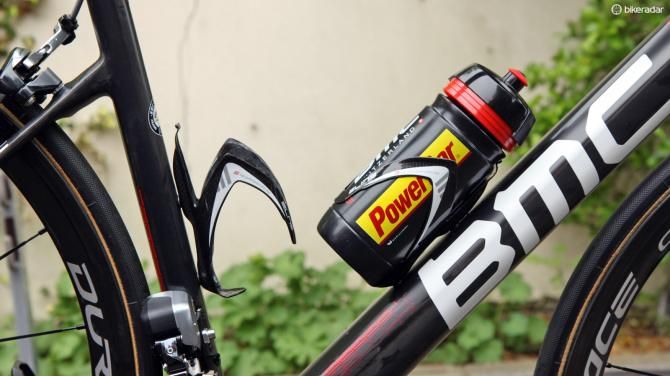

Bottle cages: Elite Custom Race (2)

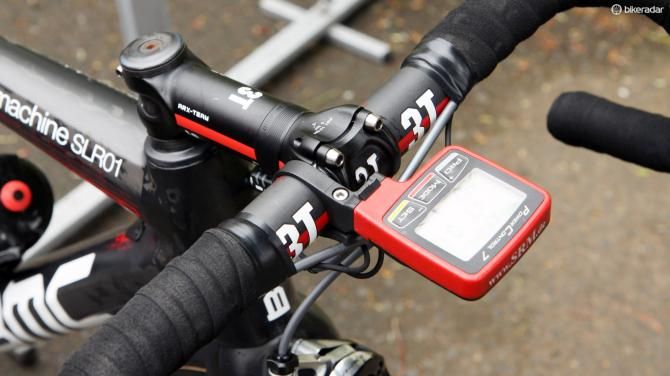

Other accessories: SRM PowerControl 7 computer

Critical measurements
Rider's height: 1.74m (5ft 8in)
Rider's weight: 68kg (149lb)
Saddle height from BB, c-t: 743mm
Saddle setback: 80mm
Seat tube length (c-t): 505mm
Tip of saddle nose to center of bars (next to stem): 573mm
Saddle-to-bar drop: 114mm
Head tube length: 128mm
Top tube length (effective): 535mm
Weight: 7.00kg (15.43lb, with computer)
