On show: Interbike 2009 Part 22

By:
Emily Wren/www.emilywren.com
Published:
October 22, 2009, 12:01 BST,
Updated:
October 22, 2009, 6:07 BST

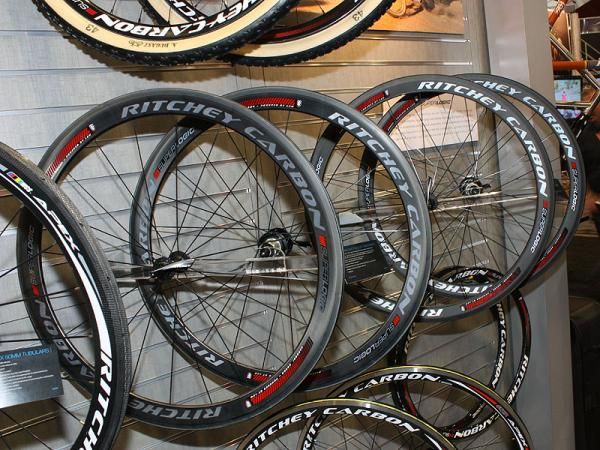

Ritchey will offer a comprehensive range of carbon wheelsets for 2010, including these road-going Superlogic models using carbon-boron rims developed by Paul Lew.

Ritchey will offer a comprehensive range of carbon wheelsets for 2010, including these road-going Superlogic models using carbon-boron rims developed by Paul Lew.

view thumbnail gallery

Ritchey is concentrating heavily on its wheel range with over half a dozen new sets for 2010, including three carbon fiber mountain bike models – two clincher and one tubular.

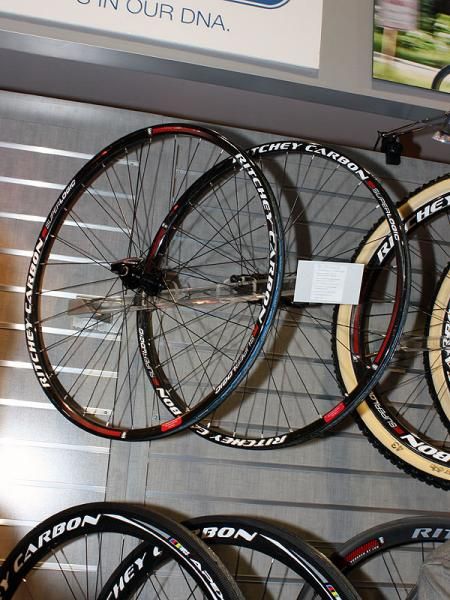

The top-end Superlogic mountain bike clinchers feature 25mm-wide, 20mm-deep unidirectional carbon rims laced to DT Swiss-made hubs with Center Lock rotor interfaces (six-bolt rotors can be used with adapters). Though the carbon rims obviously reduce weight – claimed figures are as low as 1,296g for the pair – their key benefit is the ability to use a wider profile without adding appreciable mass, thus affording better rim rigidity and improved tire support.

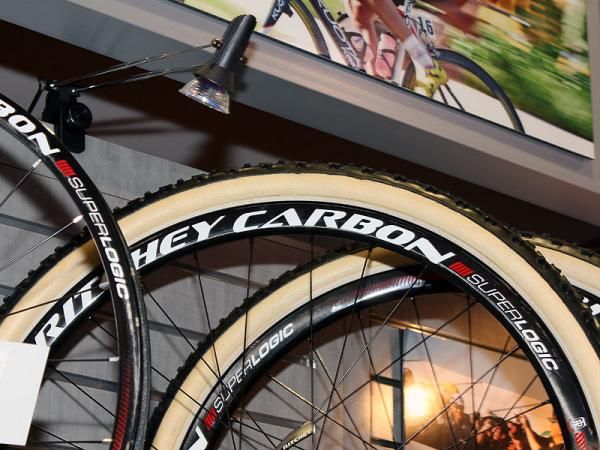

Ritchey will offer the Superlogic in both 9mm quick-release and 15mm thru-axle front fitments at a retail cost of about US$2,250 for the pair. Ultra-weight weenies and die-hard cross-country racers will also have the option of a tubular version, which drops about another 100g (more if you account for the lighter tires) yet are even slightly less expensive at about US$1,950.

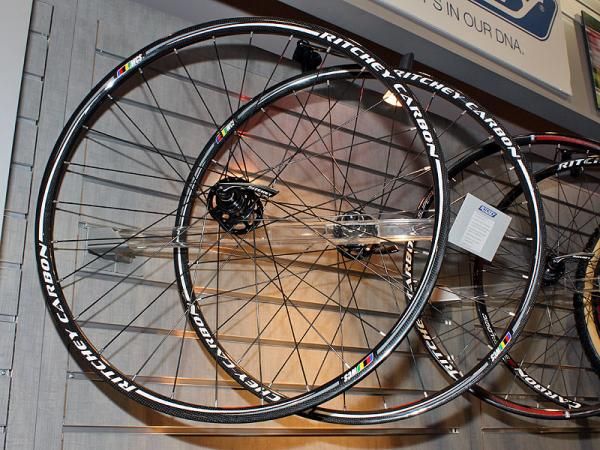

Also on tap is a slightly more conventional carbon MTB clincher set with woven carbon rims. In either case, all of the rims will use true monocoque construction with no central mold seam. Projected availability is around January 2010.

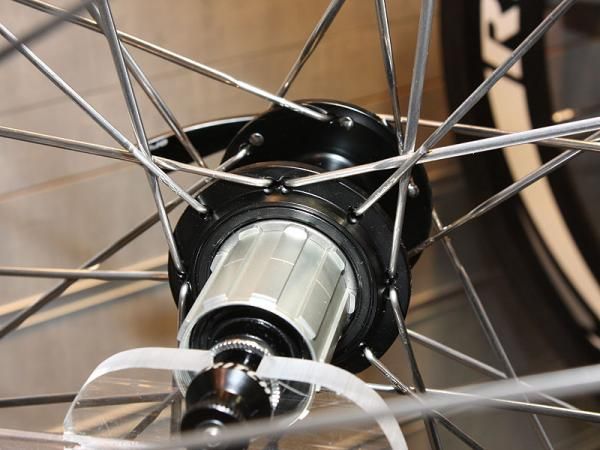

The Superlogic range will include carbon road wheels as well – again in both tubular and clincher forom – with both models using rims designed by Paul Lew and enhanced with boron fiber for additional compression stiffness. Hubs are again based on DT Swiss's 240s model but rear wheels are further enhanced with a rarely-seen crow's foot lacing pattern, which interspersed radial and crossed spokes for greater lateral rigidity.

Claimed weights are as low as 1,171g for a pair of 20/24h tubulars with the all-carbon clinchers creeping up to about 1,410. Suggested retail price will range between US$2,800 and US$3,000 for the pair.

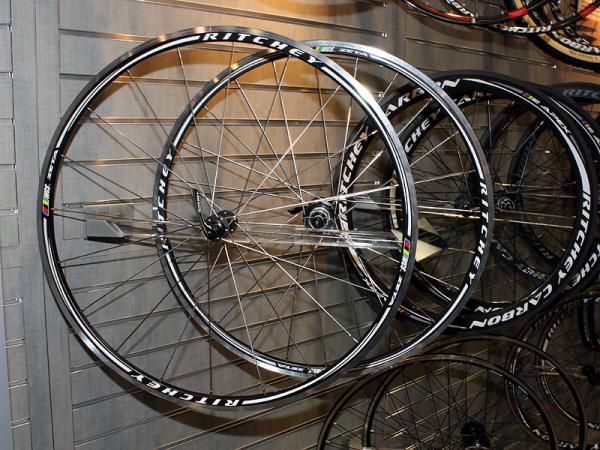

One of Ritchey's most intriguing road wheelsets for 2010, though, also happens to be one of its cheapest. The new Zeta road wheels use a relatively shallow 24mm-deep aluminum rim alloyed with vanadium for a competitively lightweight 1,545g showing at the scale, a more comfortable ride on rough roads, and a reasonable US$710 retail cost. German-made cartridge bearings and Belgian Sapim CX and CX-Ray stainless steel spokes promise good longevity, too.

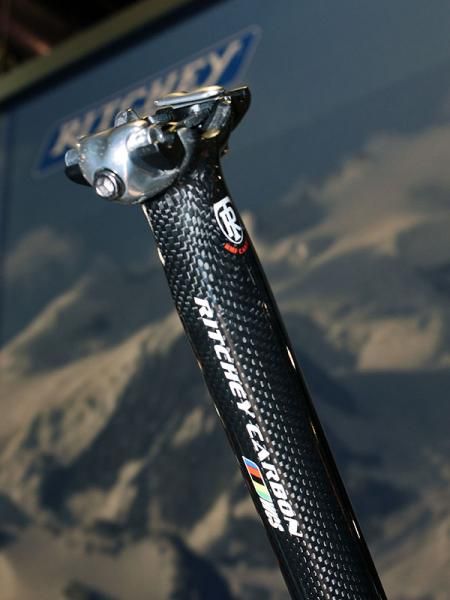

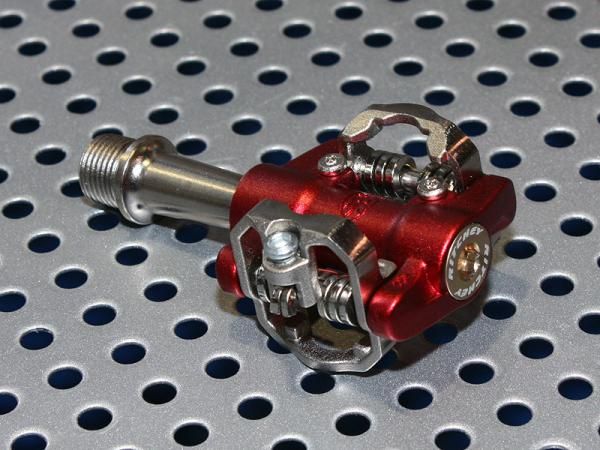

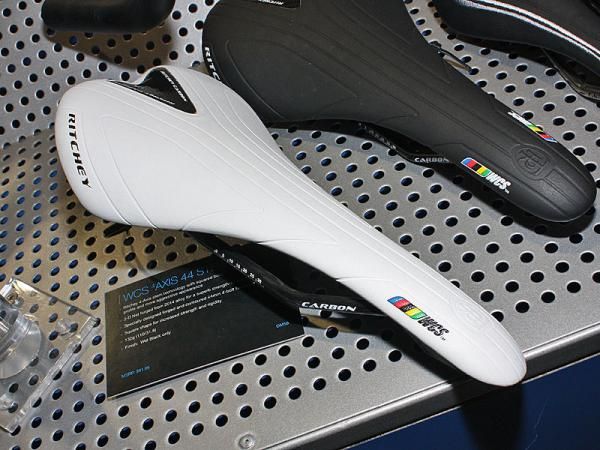

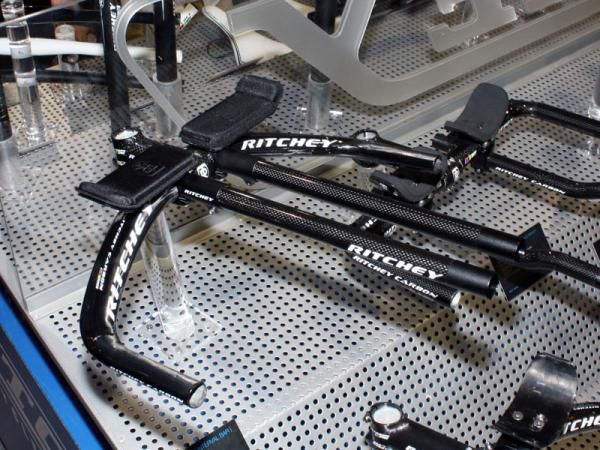

Component highlights include new 'Wet White' finishes for a number of top-end selections, a new carbon fiber version of Ritchey's popular zero-offset One-Bolt seatpost, redesigned Hammerhead integrated aero bars, a 142g WCS CF Streem road saddle with carbon rails, and a new Pro V5 mountain bike clipless pedal with reportedly more durable bearings than the previous iteration.

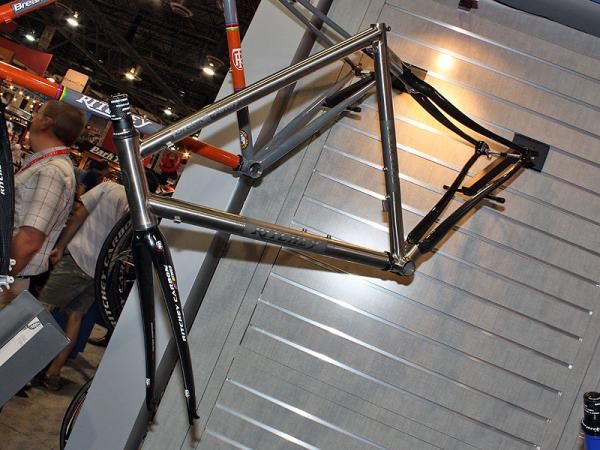

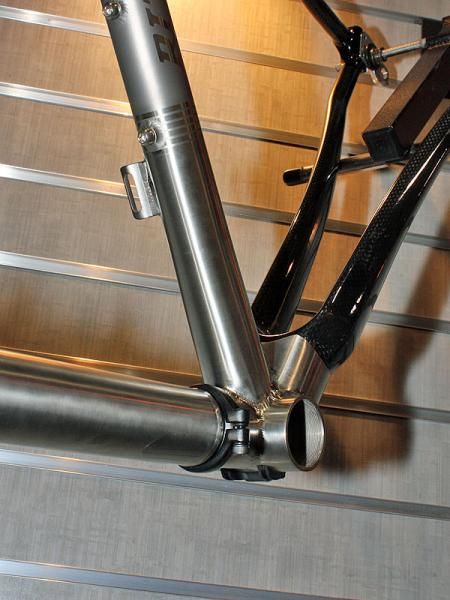

Even Ritchey's titanium Breakaway road frame has been updated for 2010 with a bigger down tube and newly swaged seat tube for additional drivetrain stiffness. Retail cost remains around US$3,000 for the frame, fork and headset – a hefty sum but one that could quickly be recouped in saved airline fees depending on how much you travel.
